SGT/SGR/SGX Battery Cable, Automotive Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

Battery Cable is for interconnection between batteries and starter or ground in vehicles.

Standard Compliance

a.Temperature range:
during installation: +5 °C up to+70 °C
fixed installed: -30 °C up to+70 °C
at short circuit of max. 5 s: up to 160 °C
ambient temperature at storage: up to 40 °C
d.Minimal inner bending radius: 4D

Specifications

Working Temperature 70℃

construction

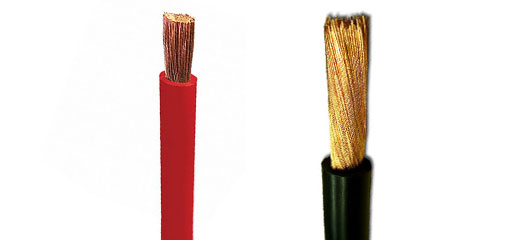

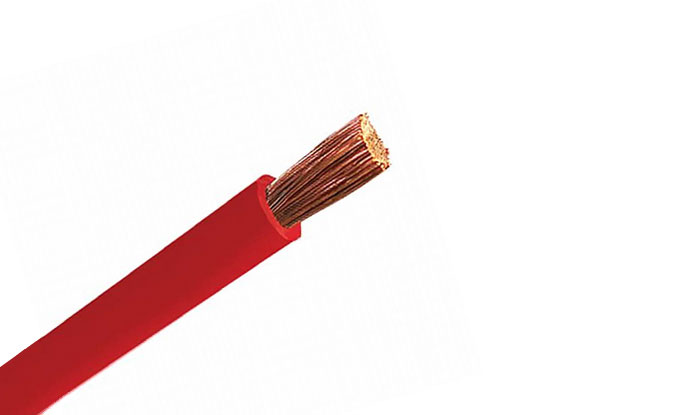

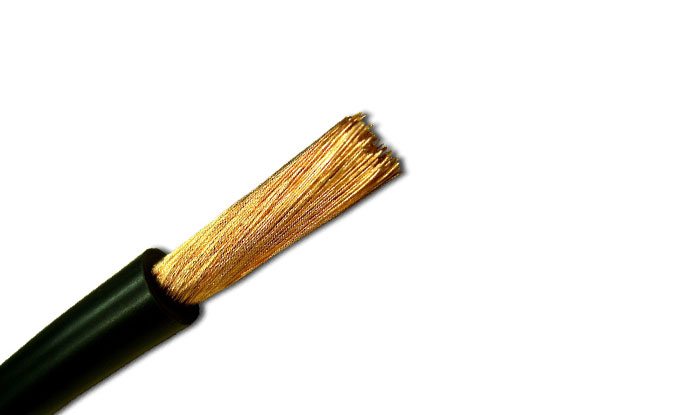

• Battery cable is manufactured using stranded bare copper with PVC, rubber, TPR or cross-link insulation
• Manufactured with black or red rubber (SGR), normally black and PVC (SGT) being both colors
• SGT - Starter or Ground General Purpose Thermoplastic
• SGR - Starter or Ground General Purpose Ground Rubber
• SGX - Starter Ground General Purpose Cross-Linked

Conductors:

Bare copper according to ASTM

Insulation:

PVC/RUBBER

possible insulation colors:

as your request

parameter

Datasheet

SIze Awg	No. of StrANdS	INSulAtIoN thICkNeSS		NomINAl oVerAll dIAmeter		Net weIght
		mm	inches	mm	inches	kg/km	Ibs/mft
4	7	0	0	9.4	0.37	246.5	165.66
2	19	1.56	0.061	11.68	0.46	391.15	262.87
1	19	1.51	0.059	12.57	0.495	471.78	317.05
1/0	19	2.06	0.081	13.97	0.55	612.63	411.72
2/0	19	2.16	0.085	15.11	0.595	722.32	485.43
3/0	19	1.97	0.077	17.78	0.7	988.7	664.45
4/0	19	1.98	0.078	19.3	0.76	1271.27	854.35
