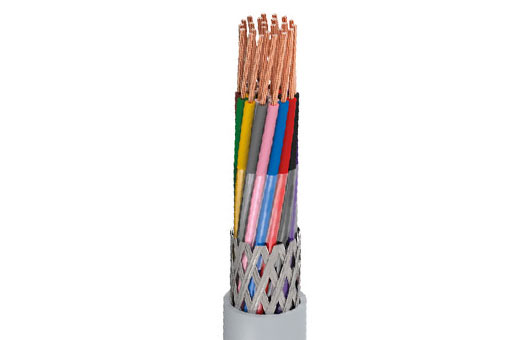

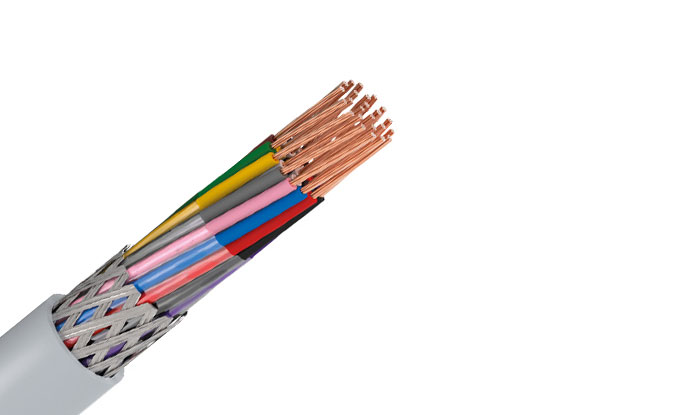

LiYCY cable, Control Cable, 250/250V Class 5 Copper Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

LiYCY cable can be used for signal transmission between electronic devices, in computer systems or process control units with increased electromagnetic compatibility requirements.

Standards:

VDE 0482-332-1-2, EN 60811-2-
Flame Retardant according to: IEC 60332-1

Characteristics

Voltage Rating Uo/U: 250/250V
Voltage Test: 1.2kV
Temperature Rating Fixed: -30ºC to +180ºC Installation: -5ºC to +70ºC
Minimum Bending Radius
Fixed Installation: 6 x overall diameter

Specifications

Low Voltage

Flame Retardant

construction

Conductor:

Class 5 Fine Stranded Bare Copper

Insulation:

PVC (Polyvinyl chloride)

Screen:

TCWB (Tinned Copper Wire Braid)

Outer Sheath:

PVC (Polyvinyl chloride)

parameter

0.75 mm2 Conductor Size

1 mm2 Conductor Size

1.5 mm2 Conductor Size

Conductor Size			Approximate net weight of Cu	Approximate net weight of cables	Maximum conductor resistance at temperature 20°C
(mm2)			(kg/km)	(kg/km)	Maximum conductor resistance at temperature 20°C
2	*	0.75	25.98	38.5	26
3	*	0.75	32.85	45.6	26
4	*	0.75	41.37	55.6	26
5	*	0.75	49.35	65.1	26
7	*	0.75	64.96	82.7	26
8	*	0.75	74.16	94.2	26
10	*	0.75	91.35	114.6	26
12	*	0.75	106.17	130.4	26
18	*	0.75	153.48	182.8	26
25	*	0.75	207.72	243.5	26
30	*	0.75	244.37	282.6	26

Conductor Size			Approximate net weight of Cu	Approximate net weight of cables	Maximum conductor resistance at temperature 20°C
(mm2)			(kg/km)	(kg/km)	Maximum conductor resistance at temperature 20°C
2	*	1.00	31.67	46.6	19.5
3	*	1.00	41.39	56.6	19.5
4	*	1.00	51.91	68.9	19.5
5	*	1.00	62.76	81.7	19.5
7	*	1.00	83.12	104.4	19.5
10	*	1.00	117.31	145.4	19.5
12	*	1.00	136.9	166.2	19.5
18	*	1.00	199.05	234.6	19.5
25	*	1.00	270.56	314	19.5

Conductor Size			Approximate net weight of Cu	Approximate net weight of cables	Maximum conductor resistance at temperature 20°C
(mm2)			(kg/km)	(kg/km)	Maximum conductor resistance at temperature 20°C
2	*	1.5	42.16	60.4	13.3
3	*	1.5	55.88	74.5	13.3
4	*	1.5	71.49	92.3	13.3
5	*	1.5	86.5	109.6	13.3
6	*	1.5	101.92	127.6	13.3
7	*	1.5	115.53	141.6	13.3
8	*	1.5	131.75	161.4	13.3
10	*	1.5	163.84	198.4	13.3
12	*	1.5	191.62	227.6	13.3
14	*	1.5	220.6	258.9	13.3
16	*	1.5	249.79	290.8	13.3
19	*	1.5	294.69	338.5	13.3
24	*	1.5	394.72	448.7	13.3
27	*	1.5	437.24	492.7	13.3
37	*	1.5	583.86	648.9	13.3
