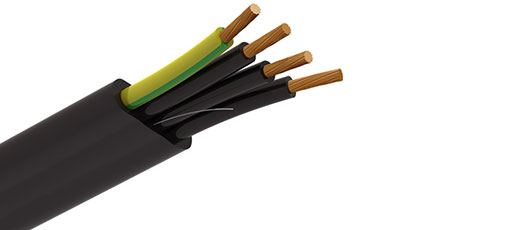

Submersible Cable, Flat Submersible Pump Cable, PVC Submersible Pump Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

Special Features:

Excellent resistant to moisture, abrasion, greace, oil.
Excellent mechanical & electrical properties.
Generally Conforming to : CENELEC HD 21, IEC 60227, BS 6500, DIN VDE 0281, IS 694.
Temperature range -15°C to +70°C

Specifications

Low Voltage

Working Temperature 70℃

Oil Resistance

construction

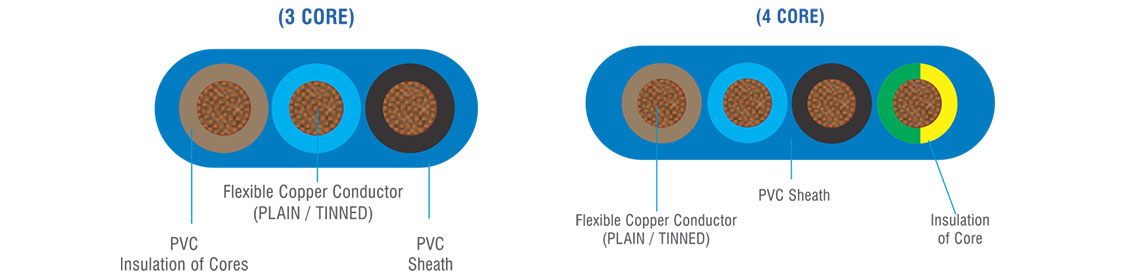

Conductor:

Finely stranded bare flexible copper conductor

Insulation:

PVC

Sheath:

PVC (sheath 1 & 2)

Core Colours:

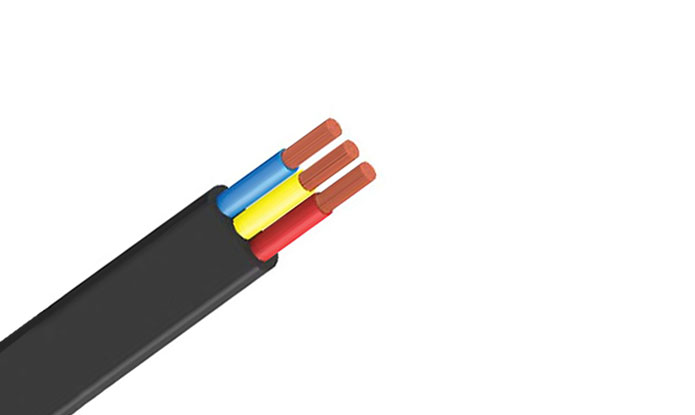

3core : Red, Yellow, Blue OR Brown, Blue, Black
4core: Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

parameter

3 Cores (1100V)

4 Cores (1100V)

Conductor		PVC Insulation		PVC Sheath			Conductor Resistance at 20°C (Max) ohms/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	Height mm	Width mm
0.5	16/0.2	0.60	0.90	2.20	4.30	8.90	39.00	4
0.75	24/0.2	0.60	0.90	2.45	4.50	9.50	26.00	7
1.00	14/0.3	0.60	0.90	2.70	4.70	10.20	18.10	12
1.50	22/0.30	0.60	0.90	2.80	4.90	10.50	12.10	14
2.50	36/0.30	0.70	1.00	3.50	5.70	12.60	7.41	18
4.00	56/0.30	0.80	1.00	4.10	6.60	14.80	4.95	26
6.00	84/0.30	0.80	1.10	5.10	7.40	17.70	3.30	31
10.00	140/0.30	1.00	1.40	6.30	9.30	22.30	1.91	42
16.00	224/0.30	1.00	1.40	7.50	10.80	26.30	1.21	57
25.00	350/0.30	1.20	2.00	10.10	14.70	35.50	0.780	72
35.00	490/0.30	1.20	2.00	11.30	16.80	39.50	0.554	90
50.00	703/0.30	1.40	2.20	13.50	18.00	45.50	0.386	115
70.00	988/0.30	1.40	2.20	15.30	20.00	51.00	0.272	143
95.00	1349/0.30	1.60	2.40	18.00	23.50	60.00	0.206	165

Conductor		PVC Insulation		PVC Sheath			Conductor Resistance at 20°C (Max) ohms/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	Height mm	Width mm
1.50	22/0.30	0.80	3.25	1.30	6.20	15.80	12.10	14
2.50	36/0.30	0.90	3.80	1.30	6.40	18.00	7.41	18
4.00	56/0.30	1.00	4.50	1.15	7.40	21.00	4.95	26
6.00	84/0.30	1.00	5.25	1.50	8.00	24.50	3.30	31
10.00	140/0.30	1.00	6.50	1.80	9.90	29.70	1.91	42
16.00	224/0.30	1.00	8.00	1.95	11.80	36.00	1.21	57
25.00	350/0.30	1.20	10.10	2.00	14.70	45.10	0.780	72
35.00	490/0.30	1.20	11.30	2.00	16.80	50.10	0.554	90
50.00	703/0.30	1.40	13.30	2.20	18.30	58.10	0.386	115
70	988/0.30	1.40	15.30	2.20	20.00	66.50	0.272	143
95	1349/0.30	1.60	18.00	2.40	23.50	77.30	0.206	165
120.00	608/0.50	1.80	19.80	3.50	27.40	87.00	0.161	188
