German Standard Industrial Cable H03VV-F/H03VVH2-F
German Standard Industrial Cable H03VV-F/H03VVH2-F
Get A Quote
Product Inquiry

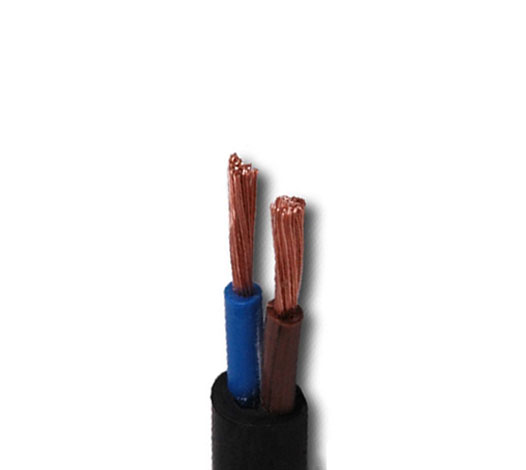

Product Picture
Product name
German Standard Industrial Cable H03VV-F/H03VVH2-F
German Standard Industrial Cable H03VV-F/H03VVH2-F
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use: 90°C.While high temperature use, skin contact must be avoided.
Standard and Approval
<HAR>BS6500, CENELEC HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52, CE low voltage directive 73/23/EEC & 93/68/EEC. ROHS compliant
Technical Characteristics
- Working voltage: 300/300 volts
- Test voltage: 2000 volts
- Flexing bending radius: 7.5 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: -5℃ to +70℃
- Static temperature: -40℃ to +70℃
- Short circuit temperature: +160℃
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
Working Temperature 70℃
Working Temperature 70℃
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant

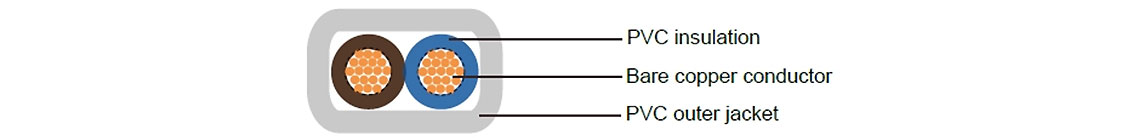

construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T12 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- Green-yellow grounding (3 conductors and above)
- PVC outer jacket TM2
parameter
H03VV-F/H03VVH2-F
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
H03VV-F
20(16/32) 2x0.50 0.5 0.6 5 9.6 38
20(16/32) 3x0.50 0.5 0.6 5.4 14.4 45
20(16/32) 4x0.50 0.5 0.6 5.8 19.2 55
18(24/32) 2x0.75 0.5 0.6 5.5 14.4 46
18(24/32) 3x0.75 0.5 0.6 6 21.6 59
18(24/32) 4x0.75 0.5 0.6 6.5 28.8 72
18(24/32) 5x0.75 0.5 0.6 7.1 36.0 87
H03VVH2-F
20(16/32) 2x0.50 0.5 0.6 3.2x5.2 9.7 32
18(24/32) 2x0.75 0.5 0.6 3.4x5.6 14.4 35
