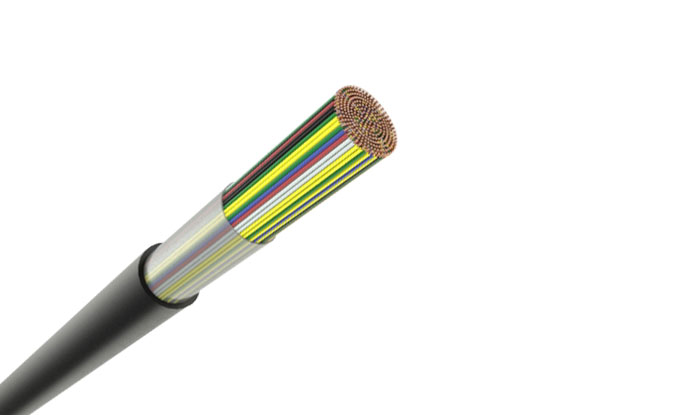

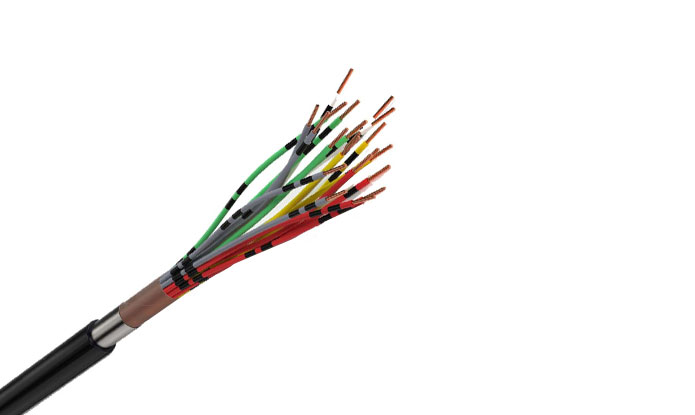

A-2YF(L)2Y...ST III BD Outdoor Telephone Cable, Instrument Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

Outdoor telephone cable for railway station telecommunication, in business and industrial facilities, in telecommunication and IT-systems for lossless transmission of datas and signals. Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use and laying underground.

Technical data

a.Temperature range:
during installation: -20 °C up to +50 °C
fixed installed: -20 °C up to +70 °C
b.Nominal voltage: Max. 225V
c.Minimal inner bending radius: 10D

Specifications

Cold Resistant -25℃

UV Resistance

Working Temperature 90℃

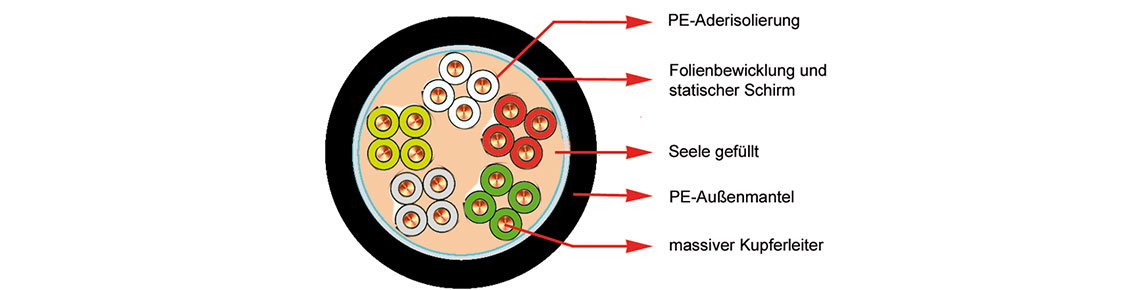

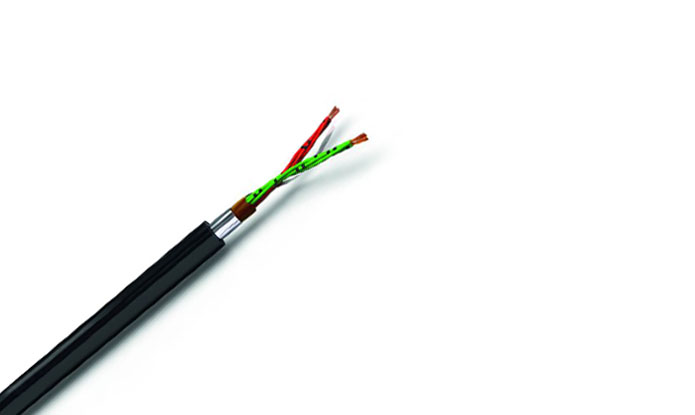

construction

Conductor:

Copper conductor, single wire

Insulation:

(PE), cores stranded to quads, quads stranded in groups, longitudinal watertight due to petrojelly filling

Taping:

plastic tape

Screen:

copolymer coated Al-tape, bonded to the PE-sheath

Sheath:

PE black, UV-resistant

parameter

Electrical data

CONSTRUCTION PARAMETERS

Nominal cross section	cal data	mm
Nominal cross section	cal data	0.6	0.8
Loop resistance max.	(Ω/km)	130	73.2
Insulation resistance, min.	(MÙ.km)	1,500	1,500
Mutual capacitance max. at 800 Hz	(nF/km)	52	55
Capacitance imbalance K1, max. at 800 Hz (98 % of the values)	(pF/300 m)	400	400
Capacitance imbalance K1, max. at 800 Hz (100 % of the values)	(pF/300 m)	800	800
Capacitance imbalance K9-K12, max. at 800 Hz (98 % of the values)	(pF/300 m)	100	100
Capacitance imbalance K9-K12, max. at 800 Hz (100 % of the values)	(pF/300 m)	300	300
Capacitance imbalance E1-E2, max. at 800 Hz	(pF/300 m)	800	800

Number of circuits x nominal cross section	Outer diameter appr.	Cu- value	Total weight appr.
(mm)	(mm)	(kg/km)	(kg/km)
2 x 2 x 0.6	9.0	13	80
6 x 2 x 0.6	12.0	36	140
10 x 2 x 0.6	13.5	59	190
20 x 2 x 0.6	16.5	115	310
30 x 2 x 0.6	19.5	172	430
40 x 2 x 0.6	21.5	228	545
50 x 2 x 0.6	23.5	285	660
70 x 2 x 0.6	27.0	398	895
100 x 2 x 0.6	31.5	568	1,225
150 x 2 x 0.6	37.0	852	1,780
200 x 2 x 0.6	42.0	1,135	2,315
2 x 2 x 0.8	10.0	22	100
6 x 2 x 0.8	13.5	62	230
10 x 2 x 0.8	15.5	103	330
20 x 2 x 0.8	22.0	203	560
30 x 2 x 0.8	25.0	304	740
40 x 2 x 0.8	27.0	404	900
50 x 2 x 0.8	30.0	505	1,100
70 x 2 x 0.8	33.0	706	1,420
100 x 2 x 0.8	41.0	1,008	2,000
150 x 2 x 0.8	47.0	1,512	2,935
200 x 2 x 0.8	53.0	2,015	3,825
