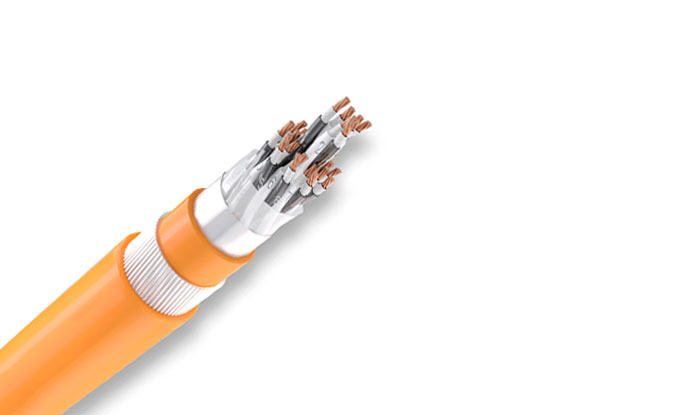

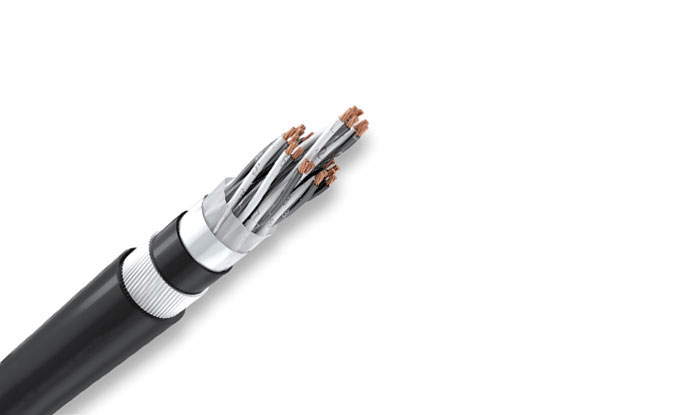

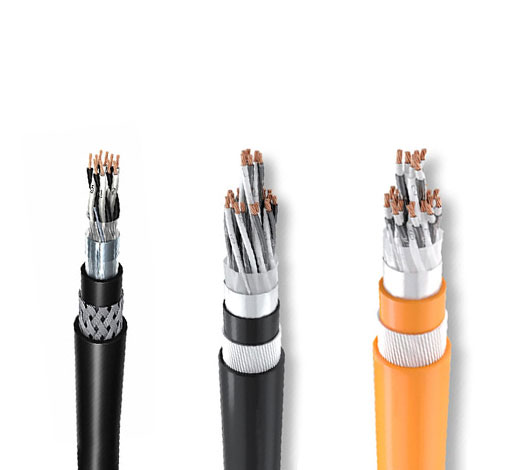

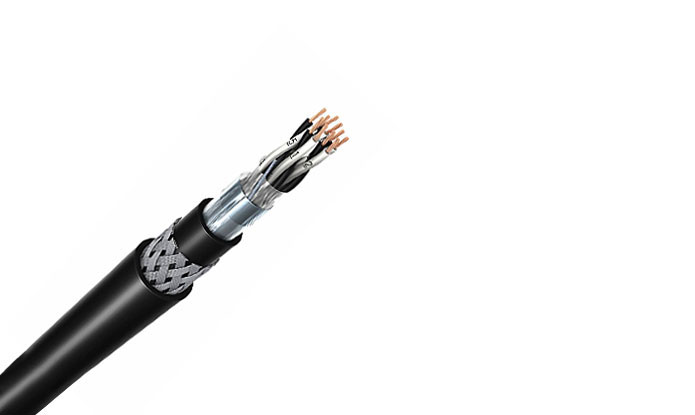

Fire Resistant Instrumention Cable, 300/500V Mica+XLPE Insulated Individual And Overall Screened Instrumentation Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

The 300/500V Mica+XLPE Insulated Individual And Overall Screened Instrumentation Cables are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.

Standards:

Basic design to BS 5308/BS 7629-1

COLOUR CODE

Insulation Colour: White with black numberings.
Sheath Colour: Orange (other colours on request).

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 6 x Overall Diameter (unarmoured cables with silicone rubber insulation)
8 x Overall Diameter (unarmoured cables with XLPE insulation)
10 x Overall Diameter (armoured cables)

Specifications

Low Voltage

Working Temperature 70℃

LSZH

Fire Resistance

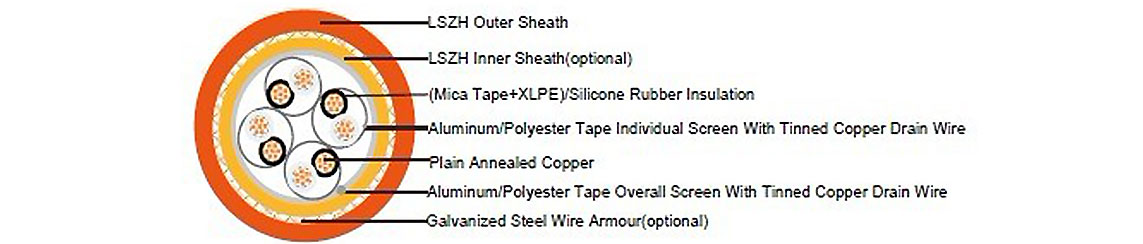

construction

Conductor:

Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2

Insulation:

Mica glass tape covered by extruded cross-linked XLPE compound or fire resistant silicone rubber compound

Cabling Elements:

Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation.

Cabling:

Pairs are cabled together.In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, the bunches are then cabled together.

Individual Screen:

Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.

Overall Screen:

Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.

Inner Sheath(optional):

Thermoplastic LSZH compound

Armouring(optional):

Galvanized steel wire armour

Outer Sheath:

Thermoplastic LSZH compound

parameter

Electrical PROPERTIES

CONSTRUCTION PARAMETERS

DIELECTRIC TEST:	2000 V r.m.s. x 5' (core/core)
INSULATION RESISTANCE	≥1000 MΩ x km (at 20°C);
SHORT CIRCUIT TEMPERATURE	XLPE: 250°C SR: 350°C

NO. OF PAIRS X CROSS SECTION	NO./ NOMINAL DIAMETER OF STRANDS	NOMINAL INSULATION THICKNESS	UNARMOURED		ARMOURED
NO. OF PAIRS X CROSS SECTION	NO./ NOMINAL DIAMETER OF STRANDS	NOMINAL INSULATION THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT	DIAMETER UNDER ARMOUR	ARMOUR WIRE DIAMETER	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
MM2	NO./MM	MM	MM	KG/KM	MM	MM	MM	KG/KM
2 Pairs
2X2x1.0	7/0.43	0.6	15.2	166	15.2	0.90	20.0	555
2X2x1.5	7/0.53	0.7	17.0	205	17.0	1.25	22.7	769
2X2x2.5	7/0.67	0.8	19.2	350	19.2	1.25	24.9	938
5 Pairs
5X2x1.0	7/0.43	0.6	17.5	335	17.5	1.25	23.2	1000
5X2x1.5	7/0.53	0.7	21.5	433	21.5	1.60	28.1	1352
5X2x2.5	7/0.67	0.8	24.0	592	24.0	1.60	30.8	1665
10 Pairs
10X2x1.0	7/0.43	0.6	22.5	626	22.5	1.60	29.3	1800
10X2x1.5	7/0.53	0.7	28.0	811	28.0	1.60	35.0	2165
10X2x2.5	7/0.67	0.8	31.5	1132	31.5	2.00	39.5	3007
20 Pairs
20X2x1.0	7/0.43	0.6	30.5	1143	30.5	2.00	38.5	3019
20X2x1.5	7/0.53	0.7	38.0	1509	38.0	2.00	46.2	3684
20X2x2.5	7/0.67	0.8	42.5	2112	42.5	2.50	51.9	5107

Note : Other conductor sizes & core configurations are available upon request.
