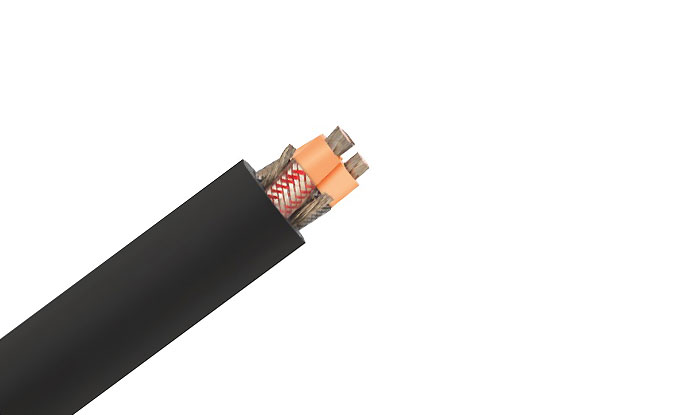

Type SHD-GC Power, Shielded Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable
Type SHD-GC Power, Shielded Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable
Get A Quote
Product Inquiry
Product Picture
Product name
Type SHD-GC Power, Shielded Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable
Type SHD-GC Power, Shielded Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is required for fail-safe monitoring
-With Bretby-type cable handling devices on longwall shearers
-Where induced voltages in the grounding system will not produce a hazard
-On low- and medium-voltage AC circuits where shielding is desired or required
Compliances
•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA
Features
•Flexible insulation shield provides shock hazard protection
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
Specifications
Low Voltage
Low Voltage
Oil Resistance
Oil Resistance
Flame Retardant
Flame Retardant

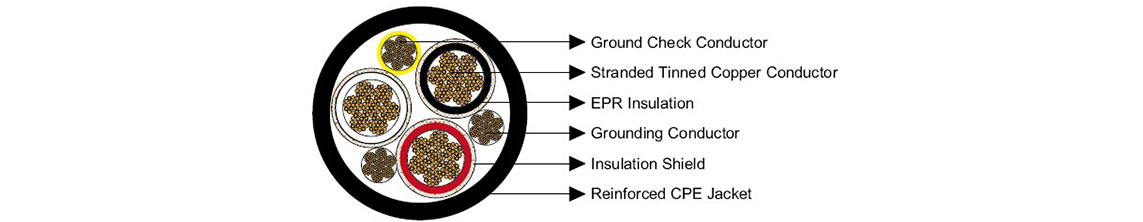

construction
Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
A flexible coated copper/textile braid shield is applied over non-conducting overlapped tape
Ground-Check Conductor:
Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene
Grounding Conductors:
Coated copper, rope-lay-stranded per ASTM B172
Two conductors in contact with the flexible copper braid shield
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
parameter
TYPE SHD-GC - 2000 VOLTS Round
NO. OF COND. COND. SIZE (AWG/ COND. STRAND NOMINAL INSULATION THICKNESS GRD. COND. SIZE (AWG) GRD-CHECK COND. SIZE (AWG) NOMINAL JACKET THICKNESS NOMINAL CABLE 0.D. NET WEIGHT
kg/ km
mm mm mm
3 6 133 1.8 10 10 3.9 32.8 1682
3 4 259 1.8 8 10 3.9 35.6 2173
3 3 259 1.8 7 10 4.3 38.3 2500
3 2 259 1.8 6 8 4.3 40.4 2961
3 1 259 2 5 8 4.8 44.7 3549
3 1/0 259 2 4 8 4.8 47.2 4115
3 2/0 329 2 3 8 5.2 50.8 4844
3 3/0 413 2 2 8 5.2 54.1 5789
3 4/0 532 2 1 8 5.6 58.7 7024
3 250 608 2.4 1/0 6 5.6 63.8 8125
3 300 741 2.4 1/0 6 6 68.1 9517
3 350 851 2.4 2/0 6 6.4 71.4 10834
3 500 1221 2.4 4/0 6 6.7 81 14614
