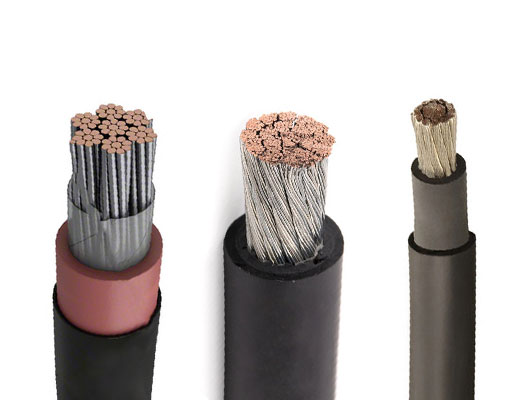

NSGAFÖU 1.8/3kV Rubber Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

APPLICATION

Type 209 series Mining Cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.

STANDARDS

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

CHARACTERISTICS

Specifications

Fire Resistance

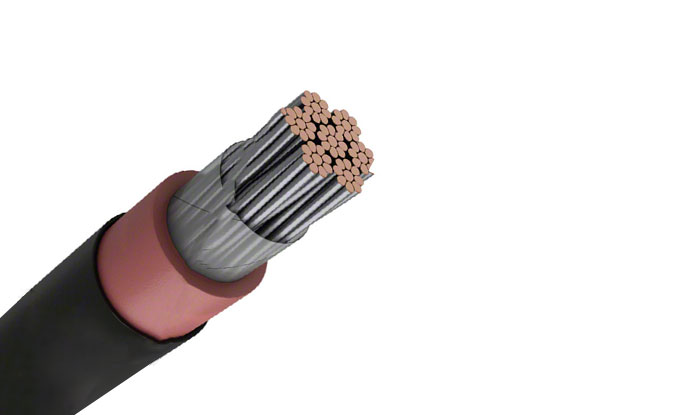

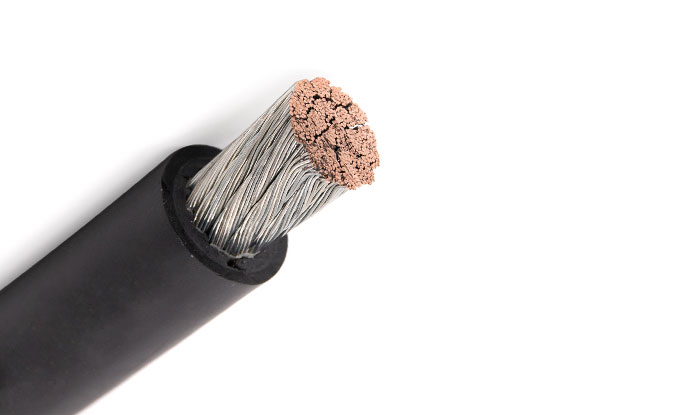

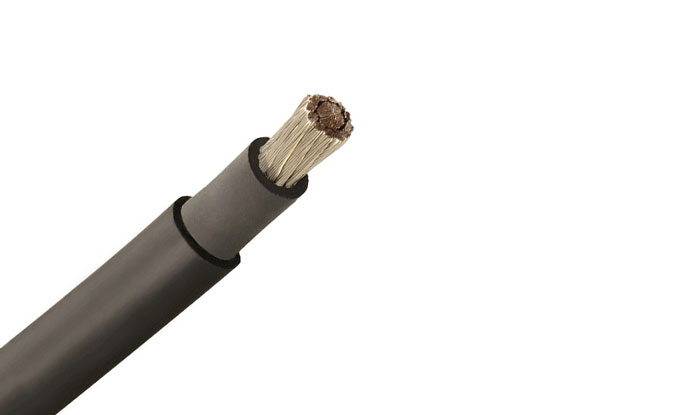

construction

Conductor:

Class 5 flexible tinned copper conductor

Insulation:

EPR (Ethylene Propylene Rubber) 3G13

Sheath:

PCP (Polychloroprene) 5GM3

Sheath Colour:

Black

parameter

NSGAFÖU 1.8/3kV Rubber Cable

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
		INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 209.1
6	84/0.30	1.5	7/0.25	7.2	24/0.20	0.8	3.8	30.0	129
10	77/0.40	1.5	7/0.25	8.6	24/0.20	0.8	3.8	32.6	157
16	126/0.40	1.6	7/0.25	9.6	24/0.20	0.8	4.0	35.8	197
25	209/0.40	1.6	7/0.25	11.3	24/0.20	0.8	4.3	39.7	255
35	285/0.40	1.6	7/0.25	12.4	24/0.20	0.8	4.6	43.1	312
50	380/0.40	1.7	7/0.25	14.1	40/0.20	0.8	5.0	47.7	386
70	203/0.67	1.8	7/0.25	16.5	40/0.20	0.8	5.4	54.0	503
95	259/0.67	2.0	7/0.25	18.2	40/0.20	0.8	6.0	58.6	605
120	336/0.67	2.1	7/0.25	20.3	40/0.20	0.8	6.4	64.4	741
150	427/0.67	2.3	7/0.25	22.3	40/0.20	0.8	6.9	70.2	896
185	518/0.67	2.5	7/0.30	30.2	40/0.20	0.8	7.4	77.4	1092
240	672/0.67	2.8	7/0.30	33.6	40/0.20	0.8	8.2	86.0	1365
300	854/0.67	3.0	7/0.40	50.1	40/0.20	0.8	8.8	95.1	1715
