NSHTÖU 0.6/1kV Rubber Insulated Flexible Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

APPLICATION

Cables are used for high mechanical stress, especially for applications with frequent winding and unwinding with simultaneous tensile and torsion stress, for building machinery, conveyors, shifts and cranes. The cables are suitable for outdoor installation in dry, damp and wet places
Other industrial applications

STANDARDS

DIN VDE 0250 p. 814

CHARACTERISTICS

Tear, abrasion and impact resistant jacket
Water resistant and ﬂame retardant
Temperature range -25℃ to +60℃. For ﬁxed installation lowest temperature is -40℃.
UV, sunlight, ozone and oil resistant
Ink jet printed for easy identiﬁcation

Specifications

Low Voltage

UV Resistance

Water Resistance

Oil Resistance

Flame Retardant

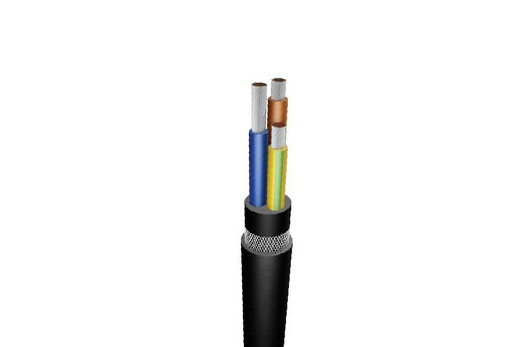

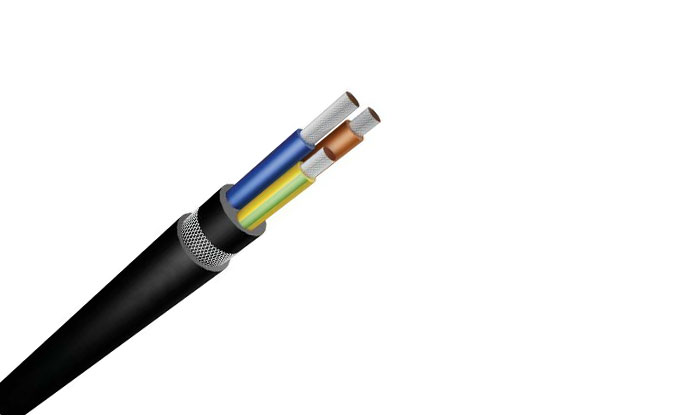

construction

Conductor:

Annealed ﬂexible stranded tin coated class 5 to IEC 60228, HD 383

Insulation:

Ethylene-propylene rubber (EPR) type 3GI3 to DIN VDE 0207 p. 20

Separator:

If needed a suitable tape separator between the conductor and insulation

Circuit identiﬁcation:

Colour coding of power conductors comply to HD 308, DIN VDE 0293-308

3-core:

Green-yellow, blue, brown

4-core:

Green-yellow, brown, black, grey

5-core:

Green-yellow, blue, brown black, grey

Above 5-core:

Green-yellow, other cores black with white numbering

Internal jacket:

A synthetic thermosetting compound

Reinforcing braid:

An open polyamide braid

Outer jacket:

A synthetic thermosetting compound type 5GM3 to DIN VDE 0207 p. 21

Colour of outer jacket:

Black or other colours can be provided

Flame propagation:

IEC 60332-1-2:2004, EN 60332-1-2:2004

parameter

Table 1

Table 2

Table 3

Table 4

Current rating

Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Nominal thickness of sheath		Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Inner	Outer	Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
n x mm2	mm	mm	mm		mm	kg/km	Ω/km
3x1.5	0.26	0.8	1.0	1.6	11.9	204	13.7
3x2.5	0.26	0.9	1.0	1.6	13.3	268	8.21
3x4	0.31	1.0	1.2	2.0	17.4	392	5.09
3x6	0.31	1.0	1.2	2.0	18.6	478	3.39
3x10	0.41	1.2	1.4	2.2	22.5	727	1.95
3x16	0.41	1.2	1.4	2.2	25.0	961	1.24
3x25	0.41	1.4	1.6	2.5	29.4	1391	0.795
3x35	0.41	1.4	1.8	3.0	32.3	1820	0.565
3x50	0.41	1.6	2.0	3.5	38.9	2596	0.393
3x70	0.51	1.6	2.0	3.5	42.8	3335	0.277
3x95	0.51	1.8	2.4	4.0	50.0	4458	0.210
3x120	0.51	1.8	2.4	4.0	52.3	5272	0.164
3x150	0.51	2.0	2.4	4.0	57.2	6401	0.132
3x240	0.51	2.4	3.2	5.0	69.0	10554	0.0817

Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Nominal thickness of sheath		Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Inner	Outer	Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
n x mm2	mm	mm	mm		mm	kg/km	Ω/km
4x1.5	0.26	0.8	1.0	1.6	12.7	238	13.7
4x2.5	0.26	0.9	1.2	2.0	15.5	360	8.21
4x4	0.31	1.0	1.2	2.0	18.5	463	5.09
4x6	0.31	1.0	1.2	2.0	19.9	571	3.39
4x10	0.41	1.2	1.4	2.2	24.2	878	1.95
4x16	0.41	1.2	1.6	2.5	26.7	1212	1.24
4x25	0.41	1.4	1.8	3.0	32.1	1821	0.795
4x35	0.41	1.4	1.8	3.0	33.8	2380	0.565
4x50	0.41	1.6	2.0	3.5	41.0	3368	0.393
4x70	0.51	1.6	2.0	3.5	46.0	4367	0.277
4x95	0.51	1.8	2.4	4.0	54.3	5562	0.210
4x120	0.51	1.8	2.8	4.5	57.3	6873	0.164
4x150	0.51	2.0	2.8	4.5	64.2	8350	0.132

Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Nominal thickness of sheath		Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Inner	Outer	Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
n x mm2	mm	mm	mm		mm	kg/km	Ω/km
5x1.5	0.26	0.8	1.0	1.6	13.6	269	13.7
5x2.5	0.26	0.9	1.2	2.0	16.6	421	8.21
5x6	0.31	1.0	1.4	2.2	21.4	764	3.39
5x10	0.41	1.2	1.4	2.2	25.0	1072	1.95
5x16	0.41	1.2	1.6	2.5	29.0	1533	1.24
7x1.5	0.26	0.8	1.2	2.0	16.9	415	13.7
7x2.5	0.26	0.9	1.2	2.0	19.1	556	8.21
7x4	0.31	1.0	1.4	2.2	22.7	796	5.09
10x4	0.31	1.0	1.4	2.2	26.0	1007	5.09
12x1.5	0.26	0.8	1.4	2.2	20.3	599	13.7
12x2.5	0.26	0.9	1.4	2.2	23.1	813	8.21
18x1.5	0.26	0.8	1.4	2.2	22.9	789	13.7
18x2.5	0.26	0.9	1.6	2.5	27.3	1156	8.21
18x4	0.31	1.0	1.8	3.0	43.4	1837	5.09

Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Nominal thickness of sheath		Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Inner	Outer	Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
n x mm2	mm	mm	mm		mm	kg/km	Ω/km
24x1.5	0.26	0.8	1.4	2.2	26.0	985	13.7
24x2.5	0.26	0.9	1.4	2.2	31.1	1454	8.21
36x1.5	0.26	0.8	1.6	2.5	30.0	1297	13.7
36x2.5	0.26	0.9	1.8	3.0	36.3	2075	8.21
37x1.5	0.26	0.8	1.6	2.5	31.0	1343	13.7
3x2.5+1.5	0.26/0.26	0.9/0.8	1.2	2.0	16.5	346	8.21/13.7
3x4+2.5	0.31/0.26	1.0/0.9	1.2	2.0	18.1	439	5.09/8.21
3x6+2.5	0.31/0.26	1.0/0.9	1.2	2.0	19.2	520	3.39/8.21
3x6+4	0.31/0.31	1.0/1.0	1.2	2.0	19.6	544	3.39/5.09
3x16+10	0.41/0.41	1.2/1.2	1.6	2.5	27.3	1164	1.24/1.95
3x25+16	0.41/0.41	1.4/1.2	1.8	3.0	32.2	1698	0.795/1.24
3x35+16	0.41/0.41	1.4/1.2	1.8	3.0	33.5	2021	0.565/1.24
3x70+35	0.51/0.41	1.6/1.4	2.0	3.9	46.0	4123	0.277/0.565
3x95+50	0.51/0.41	1.8/3.8	2.4	4.0	53.0	5515	0.210/0.393
3x150+3x70/3	0.51/0.41	2.0/1.4	2.4	4.0	56.1	7195	0.132/0.277
3x185+3x95	0.51/0.41	2.2/1.4	2.8	4.5	63.4	9150	0.108/0.210
3x240+3x95/3	0.51/0.41	2.2/1.4	3.2	5.0	69.1	11290	0.0817/0.210
3x240+3x120/3	0.51/0.41	2.2/1.4	3.2	5.0	69.1	11290	0.0817/0.164

Number of loaded cores	2 or 3 , *
Conductor cross-section in mm2	Current rating, A
1.5	18
2.5	26
4	34
6	44
10	61
16	82
25	108
35	135
50	168
70	207
95	250
120	292
150	335
185	378

Current rating as deﬁned to DIN VDE 0298-4. Ambient air temperature: 30°C. Operating temperature at conductor 600C.
