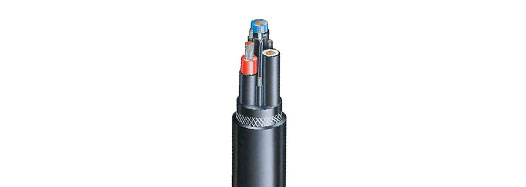

Type 241 1.1 to 11kV Mining Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

overview

These Type 241 1.1 to 11kV Mining cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.

Standards:

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Specifications

Low Voltage

Medium Voltage

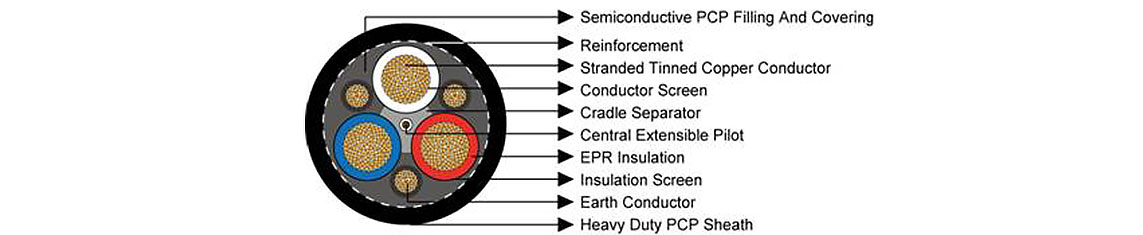

construction

3×Conductors:

Flexible stranded tinned annealed copper conductor.

Conductor Screen:

1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

Insulation:

EPR.

Insulation Screen:

Semiconductive tape.

Cradle Separator:

Semiconductive PCP.

Overall Core Screen:

Semiconductive PCP filling and covering.

3×Interstitial Earth Conductor:

Semiconductive PCP insulated flexible stranded tinned copper conductor.

1×Central Extensible Pilot:

EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement:

Open-weave braid reinforcement.

Sheath:

Heavy duty PCP sheath.

parameter

Type 241.1

Type 241.3

Type 241.6

Type 241.11

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 241.1
6	84/0.30	1.5	18/0.30	1.0	24/0.20	0.8	3.8	28.5	106
10	77/0.40	1.5	27/0.30	1.0	24/0.20	0.8	3.8	31.1	127
16	126/0.40	1.6	42/0.30	1.0	24/0.20	0.8	3.9	34.1	164
25	209/0.40	1.6	66/0.30	1.0	24/0.20	0.8	4.2	37.9	208
35	285/0.40	1.6	90/0.30	1.0	24/0.20	0.8	4.4	41.2	254
50	380/0.40	1.7	120/0.30	1.0	40/0.20	0.8	4.9	45.9	328
70	203/0.67	1.8	39/0.67	1.0	40/0.20	0.8	5.3	52.2	480
95	259/0.67	2.0	39/0.67	1.0	40/0.20	0.8	5.8	56.7	600
120	336/0.67	2.1	42/0.67	1.2	40/0.20	0.8	6.3	62.7	710
150	427/0.67	2.3	54/0.67	1.2	40/0.20	0.8	6.7	68.3	865
185	518/0.67	2.5	63/0.67	1.4	40/0.20	0.8	7.3	74.9	1030
240	672/0.67	2.8	77/0.67	1.4	40/0.20	0.8	8.0	83.3	1300
300	854/0.67	3.0	98/0.67	1.4	40/0.20	0.8	8.7	91.2	1600

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 241.3
16	126/0.40	3.0	42/0.30	1.0	24/0.20	0.8	5.0	43.8	249
25	209/0.40	3.0	66/0.30	1.0	24/0.20	0.8	5.3	47.7	315
35	285/0.40	3.0	90/0.30	1.0	24/0.20	0.8	5.6	51.1	376
50	380/0.40	3.0	120/0.30	1.2	40/0.20	0.8	6.0	55.2	450
70	203/0.67	3.0	39/0.67	1.2	40/0.20	0.8	6.4	60.3	576
95	259/0.67	3.0	48/0.67	1.2	40/0.20	0.8	6.8	63.8	675
120	336/0.67	3.0	60/0.67	1.2	40/0.20	0.8	7.2	69.1	810
150	427/0.67	3.0	77/0.67	1.2	40/0.20	0.8	7.6	73.8	952
185	518/0.67	3.0	91/0.67	1.4	40/0.20	0.8	8.0	79.2	1130
240	672/0.67	3.0	112/0.67	1.4	40/0.20	0.8	8.6	86.0	1380
300	854/0.67	3.0	144/0.67	1.4	40/0.20	0.8	9.1	92.6	1660

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 241.6
16	126/0.40	5.0	42/0.30	1.4	24/0.20	0.8	6.1	54.9	365
25	209/0.40	5.0	66/0.30	1.4	24/0.20	0.8	6.4	58.8	440
35	285/0.40	5.0	90/0.30	1.4	24/0.20	0.8	6.7	62.2	509
50	380/0.40	5.0	120/0.30	1.4	40/0.20	0.8	7.1	66.2	592
70	203/0.67	5.0	39/0.67	1.4	40/0.20	0.8	7.4	71.2	727
95	259/0.67	5.0	48/0.67	1.4	40/0.20	0.8	7.9	74.8	835
120	336/0.67	5.0	60/0.67	1.4	40/0.20	0.8	8.3	80.2	990
150	427/0.67	5.0	77/0.67	1.4	40/0.20	0.8	8.6	84.6	1140
185	518/0.67	5.0	91/0.67	1.4	40/0.20	0.8	9.0	90.0	1311
240	672/0.67	5.0	119/0.67	1.4	40/0.20	0.8	9.6	96.8	1576
300	854/0.67	5.0	156/0.67	1.4	40/0.20	0.8	10.2	103.6	1900

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 241.11
25	209/0.40	7.6	66/0.30	1.8	24/0.20	0.8	7.8	73.2	645
35	285/0.40	7.6	90/0.30	1.8	24/0.20	0.8	8.1	76.6	724
50	380/0.40	7.6	120/0.30	1.8	40/0.20	0.8	8.5	80.6	825
70	203/0.67	7.6	39/0.67	1.8	40/0.20	0.8	8.9	85.7	975
95	259/0.67	7.6	48/0.67	1.8	40/0.20	0.8	9.3	89.1	1088
120	336/0.67	7.6	60/0.67	1.8	40/0.20	0.8	9.7	94.4	1258
150	427/0.67	7.6	77/0.67	1.8	40/0.20	0.8	10.0	98.9	1423
185	518/0.67	7.6	91/0.67	1.8	40/0.20	0.8	10.4	104.2	1610
