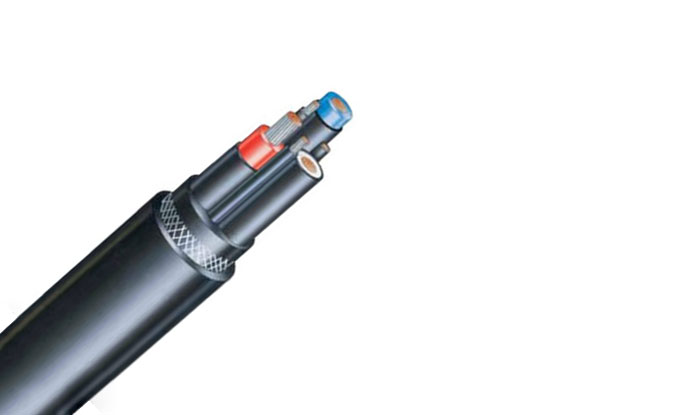

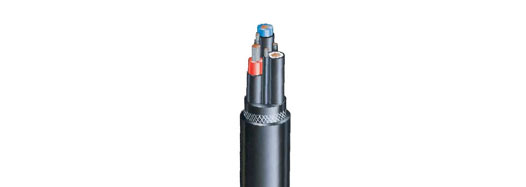

Type 440 1.1 to 22kV Mining Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

overview

These cables are mainly used as flexible feedertrailing cables for power supply to machinery and equipment, include 3 large pilots and a centralsemiconductive cradle for support and protection of power cores.

STANDARDS:

AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Specifications

Low Voltage

Medium Voltage

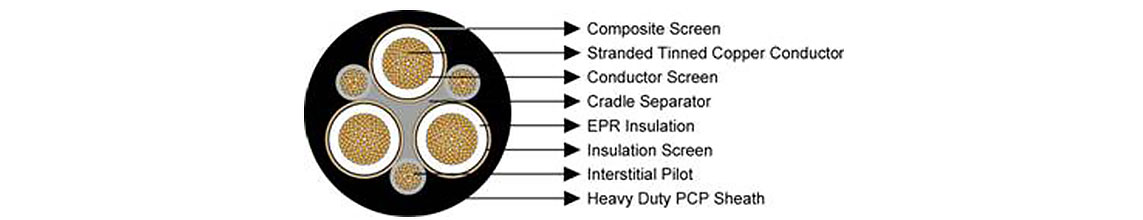

construction

3×Conductors:

Flexible stranded tinned annealed copper conductor.

Conductor Screen:

1.1/1.1kv - polyester barrier tape, 3.3/3.3kv and above - polyester barrier tape and extruded semi conductive tape.

Insulation:

EPR.

Insulation Screen:

Semiconductive tape.

Composite Screen (earth conductor):

Tinned annealed copper braiding interwove with polyester yarn.

Cradle Separator:

Semi conductive PCP.

3×Interstitial Pilot:

EPR covered flexible stranded tinned copper conductor.

Sheath:

Heavy duty PCP sheath.

parameter

Type 440.1 Class2

Type 440.3 Class2

Type 440.6 Class2

Type 440.11 Class2

Type 440.22 Class2

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 440.1 Class2
6	84/0.30	1.5	7/0.25	7.2	18/0.30	1.0	3.8	30.0	135
10	77/0.40	1.5	7/0.25	8.6	27/0.30	1.0	3.8	32.6	166
16	126/0.40	1.6	7/0.25	9.6	42/0.30	1.0	4.0	35.8	204
25	209/0.40	1.6	7/0.25	11.3	66/0.30	1.2	4.3	39.7	269
35	285/0.40	1.6	7/0.25	12.4	90/0.30	1.2	4.6	43.1	324
50	380/0.40	1.7	7/0.25	14.1	120/0.30	1.2	5.0	47.7	403
70	203/0.67	1.8	7/0.25	16.5	39/0.67	1.2	5.4	53.9	539
95	259/0.67	2.0	7/0.30	21.8	39/0.67	1.2	6.0	59.3	659
120	336/0.67	2.1	7/0.30	24.7	42/0.67	1.4	6.4	65.1	802
150	427/0.67	2.3	7/0.40	36.1	54/0.67	1.4	6.9	72.1	1018
185	518/0.67	2.5	7/0.40	40.5	63/0.67	1.4	7.4	78.6	1198
240	672/0.67	2.8	7/0.50	57.7	77/0.67	1.6	8.2	88.6	1549
300	854/0.67	3.0	7/0.50	63.2	98/0.67	1.6	8.8	96.3	1870

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 440.3 Class2
16	126/0.40	3.0	7/0.25	13.1	42/0.30	1.4	5.3	46.2	304
25	209/0.40	3.0	7/0.25	14.8	66/0.30	1.4	5.6	50.1	379
35	285/0.40	3.0	7/0.25	15.8	90/0.30	1.4	5.9	53.5	446
50	380/0.40	3.0	7/0.25	17.2	120/0.30	1.4	6.3	57.6	524
70	203/0.67	3.0	7/0.25	18.6	39/0.67	1.4	6.6	62.5	659
95	259/0.67	3.0	7/0.25	20.3	39/0.67	1.6	7.1	66.2	754
120	336/0.67	3.0	7/0.30	27.2	42/0.67	1.6	7.4	72.0	914
150	427/0.67	3.0	7/0.40	39.6	54/0.67	1.6	7.8	78.0	1119
185	518/0.67	3.0	7/0.40	42.2	63/0.67	1.6	8.2	83.4	1289
240	672/0.67	3.0	7/0.40	46.6	77/0.67	1.6	8.8	90.3	1559
300	854/0.67	3.0	7/0.50	63.2	98/0.67	1.6	9.4	98.4	1920

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 440.6 Class2
16	126/0.40	5.0	7/0.25	17.2	42/0.30	1.4	6.4	57.3	444
25	209/0.40	5.0	7/0.25	18.6	66/0.30	1.6	6.7	61.2	523
35	285/0.40	5.0	7/0.25	18.6	90/0.30	1.6	7.0	64.6	599
50	380/0.40	5.0	7/0.25	21.3	120/0.30	1.6	7.3	68.5	689
70	203/0.67	5.0	7/0.25	23.4	39/0.67	1.6	7.7	73.7	834
95	259/0.67	5.0	7/0.30	29.2	39/0.67	1.8	8.1	77.8	964
120	336/0.67	5.0	7/0.30	31.7	42/0.67	1.8	8.5	83.1	1119
150	427/0.67	5.0	7/0.40	45.7	54/0.67	1.8	8.9	89.1	1349
185	518/0.67	5.0	7/0.40	48.4	63/0.67	1.8	9.3	94.5	1529
240	672/0.67	5.0	7/0.40	52.8	77/0.67	1.8	9.9	101.4	1810
300	854/0.67	5.0	7/0.50	71.5	98/0.67	1.8	10.4	109.3	2190

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 440.11 Class2
25	209/0.40	7.6	7/0.25	23.7	66/0.30	2.0	8.1	75.6	759
35	285/0.40	7.6	7/0.30	30.2	90/0.30	2.0	8.4	79.7	869
50	380/0.40	7.6	7/0.30	31.7	120/0.30	2.0	8.7	83.6	974
70	203/0.67	7.6	7/0.30	34.1	39/0.67	2.0	9.1	88.8	1139
95	259/0.67	7.6	7/0.40	47.5	39/0.67	2.2	9.6	93.7	1319
120	336/0.67	7.6	7/0.40	51.0	42/0.67	2.2	9.9	98.8	1489
150	427/0.67	7.6	7/0.40	53.7	54/0.67	2.2	10.3	103.5	1679
185	518/0.67	7.6	7/0.40	57.2	63/0.67	2.2	10.7	108.8	1880

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 440.22 Class2
35	285/0.40	10.5	7/0.40	53.2	90/0.30	2.5	10.0	105.0	1270
50	380/0.40	10.5	7/0.40	54.1	120/0.30	2.5	10.3	108.9	1392
70	203/0.67	10.5	7/0.40	58.0	39/0.67	2.5	10.7	111.2	1558
