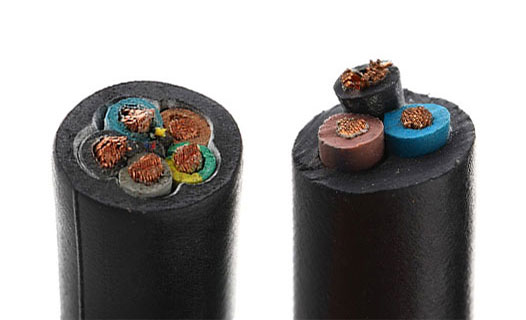

NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | CONDUCTOR DIAMETER | MINIMUM OVERALL DIAMETER | MAXIMUM OVERALL DIAMETER | NOMINAL WEIGHT |
mm2 | mm | mm | mm | kg/km | |
1 | 1.5 | 1.5 | 5.7 | 7.1 | 50 |
1 | 2.5 | 1.9 | 6.3 | 7.9 | 70 |
1 | 4 | 2.4 | 7.2 | 9 | 100 |
1 | 6 | 3 | 7.9 | 9.8 | 130 |
1 | 10 | 3.9 | 9.5 | 11.9 | 200 |
1 | 16 | 4.9 | 10.8 | 13.4 | 280 |
1 | 25 | 6.1 | 12.7 | 15.8 | 400 |
1 | 35 | 7.3 | 14.3 | 17.9 | 510 |
1 | 50 | 8.9 | 16.5 | 20.6 | 710 |
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | CONDUCTOR DIAMETER | MINIMUM OVERALL DIAMETER | MAXIMUM OVERALL DIAMETER | NOMINAL WEIGHT |
mm2 | mm | mm | mm | kg/km | |
3 | 1.5 | 1.5 | 9.2 | 11.9 | 150 |
3 | 2.5 | 1.9 | 10.9 | 14 | 210 |
3 | 4 | 2.4 | 12.7 | 16.2 | 280 |
3 | 6 | 3 | 14.1 | 18 | 370 |
3 | 10 | 3.9 | 19.1 | 24.2 | 660 |
3 | 16 | 4.9 | 21.8 | 27.6 | 920 |
3 | 25 | 6.1 | 26.1 | 33 | 1360 |
3 | 35 | 7.3 | 29.3 | 37.1 | 1820 |
3 | 50 | 8.9 | 34.1 | 42.9 | 2500 |
4 | 1 | 1.2 | 9.2 | 11.9 | 150 |
4 | 1.5 | 1.5 | 10.2 | 13.1 | 190 |
4 | 2.5 | 1.9 | 12.1 | 15.5 | 260 |
4 | 4 | 2.4 | 14 | 17.9 | 350 |
4 | 6 | 3 | 15.7 | 20 | 460 |
4 | 10 | 3.9 | 20.9 | 26.5 | 830 |
4 | 16 | 4.9 | 23.8 | 30.1 | 1190 |
4 | 25 | 6.1 | 28.9 | 36.6 | 1720 |
4 | 35 | 7.3 | 32.5 | 41.1 | 2260 |
7 | 1.5 | 1.5 | 15 | 19 | 340 |
7 | 2.5 | 1.9 | 17.5 | 21.5 | 500 |
12 | 1.5 | 1.5 | 17.6 | 22.4 | 530 |
12 | 2.5 | 1.9 | 20.6 | 26.2 | 720 |
18 | 1.5 | 1.5 | 20.7 | 26.3 | 700 |
24 | 1.5 | 1.5 | 24.3 | 30.7 | 960 |
36 | 1.5 | 1.5 | 27.8 | 35.2 | 1360 |
