H07RN-F BS EN 50525-2-21 Flexible Rubber Cable, rubber outer sheathed cables

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

Standards:

BS EN 50525-2-21, BS EN 60228
Flame Retardant according to BS EN/IEC 60332-1-2

Characteristics

Voltage Rating: U/Uo, 450/750V
Temperature Rating
Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter

Specifications

Low Voltage

Oil Resistance

construction

Conductor:

Class 5 flexible copper conductor

Insulation:

EPR (Ethylene Propylene Rubber)

Sheath:

PCP (Polychloroprene)

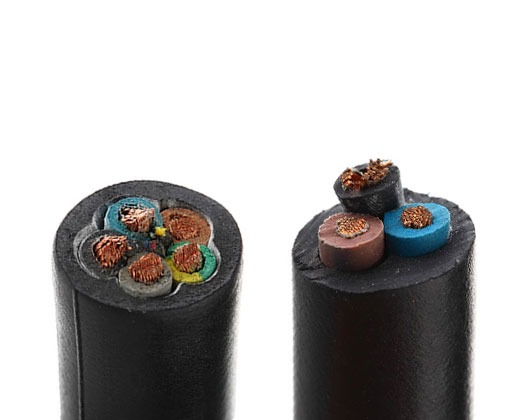

Core Identification:

1 core: Black

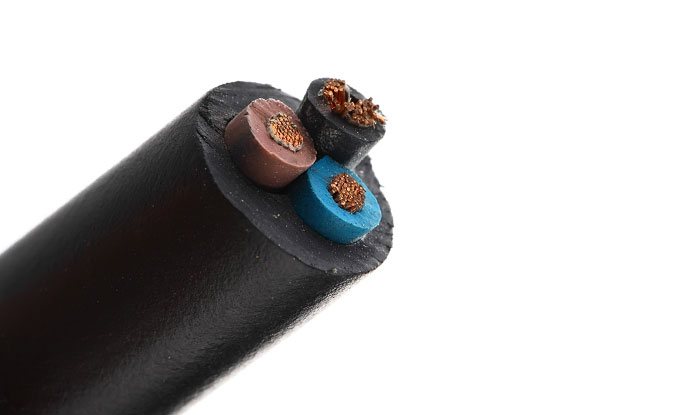

2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey

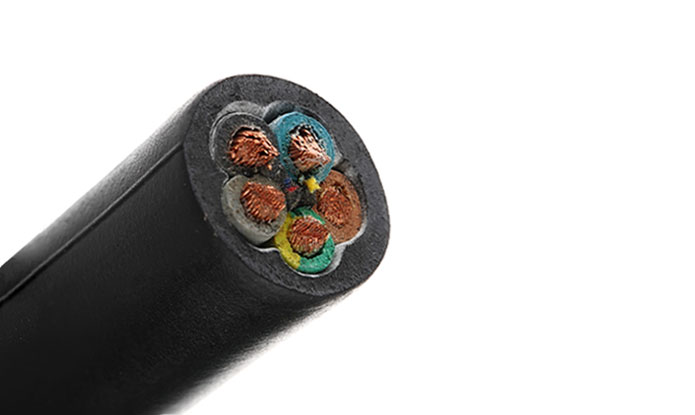

5 core: Green/Yellow Blue Brown Black Grey
6 core and above: Black with White numbers Green/Yellow

Sheath Colour:

Black

parameter

Single Core

Multi Cores

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	kg/km
1	1.5	0.8	5.8	52
1	2.5	0.9	6.5	67
1	4	1	7.4	92
1	6	1	8.1	119
1	10	1.2	9.8	185
1	16	1.2	11.35	258
1	25	1.4	13.3	375
1	35	1.4	14.6	485
1	50	1.6	17.2	669
1	70	1.6	19.35	892
1	95	1.8	22.2	1160
1	120	1.8	24.3	1436
1	150	2	25.9	1748
1	185	2.2	29.7	2142
1	240	2.4	31.5	2698
1	300	2.6	36.5	3348
1	400	2.8	40.4	4293
1	500	3	42.6	5262
1	630	3	47.2	6790

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	kg/km
2	1	0.8	8.1	94
2	1.5	0.8	9	120
2	2.5	0.9	10.7	173
2	4	1	12.3	239
2	6	1	13.8	313
2	10	1.2	18.6	563
2	16	1.2	21.7	830
2	25	1.4	25.8	1211
3	1	0.8	8.74	117
3	1.5	0.8	9.68	147
3	2.5	0.9	11.48	123
3	4	1	13.2	297
3	6	1	14.78	390
3	10	1.2	19.9	705
3	16	1.2	23.31	1031
3	25	1.4	27.7	1512
3	35	1.4	30.2	1907
3	50	1.6	35.8	2651
3	70	1.6	40.1	3484
3	95	1.8	46.4	4594
4	1	0.8	9.63	142
4	1.5	0.8	10.63	180
4	2.5	0.9	12.6	260
4	4	1	14.6	336
4	6	1	16.4	449
4	10	1.2	21.8	833
4	16	1.2	25.4	1138
4	25	1.4	30.7	1714
4	35	1.4	33.4	2204
4	50	1.6	39.6	3029
4	70	1.6	44.9	4121
4	95	1.8	51.9	5361
5	1.5	0.8	11.8	206
5	2.5	0.9	14	297
5	4	1	16.2	422
5	6	1	18.2	567
5	10	1.2	24	1010
5	16	1.2	28.2	1400
5	25	1.4	33.9	2096
5	35	1.4	37.2	2700
5	50	1.6	44	3730
7	1.5	0.8	15.13	315
7	2.5	0.9	17.6	445
12	1.5	0.8	18.2	493
12	2.5	0.9	21.4	702
19	1.5	0.8	22.1	710
