DLO Cable, Diesel Locomotive Cable, 2000V Cable (DLO), single conductor portable power cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Overview

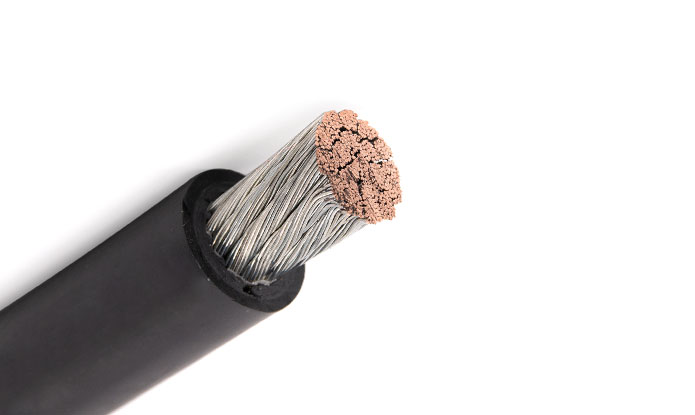

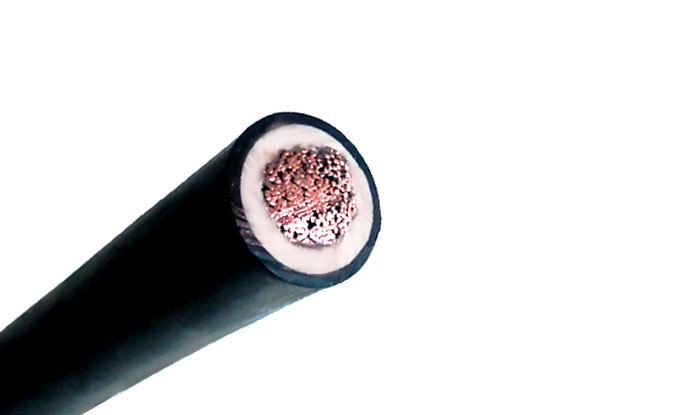

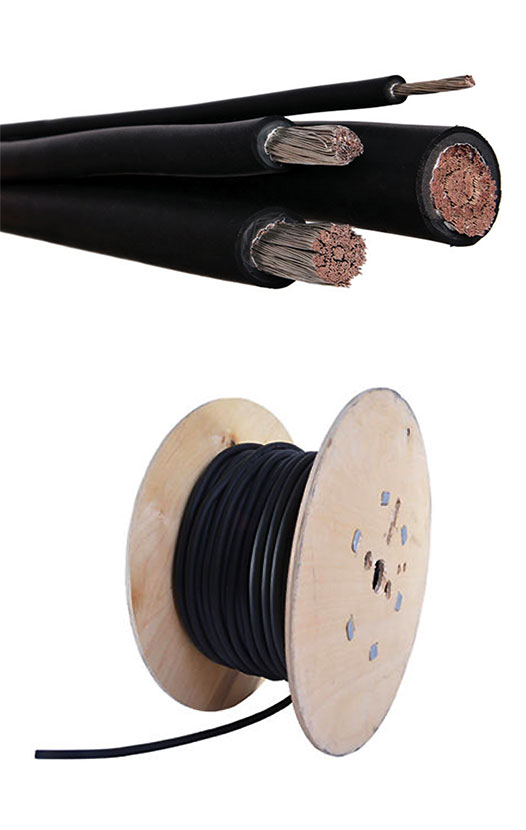

2000V Cable (DLO) is a single conductor portable power cable suitable for use in applications needing great flexibility, excellent wearability and good flex life. Applications include locomotive and car equipment, motor and generator leads, battery leads, shipyards, telecommunications power, heavy earth moving equipment, renewable energy and other heavy duty flexing applications.

Ratings & Approvals

ICEA S-95-658/ NEMA WC-70: Nonshielded Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
UL Standard 44: Thermoset Insulated Wires & Cables, Types RHH, RHW-2. UL VW-1
UL Standard 1685: Vertical Tray Fire propagation and Smoke Release Test for Electrical and optical Fiber Cables. (UL, ST-1)
ASTM B-33: Standard Specification for Tinned Soft or Annealed Copper Wire for Electrical Purposes
ASTM B-172: Standard Specification for Rope-Lay-Stranded Copper Conductors having Bunch-Stranded Members, for Electrical Conductors
MSHA P-184
RoHS Compliant

Features

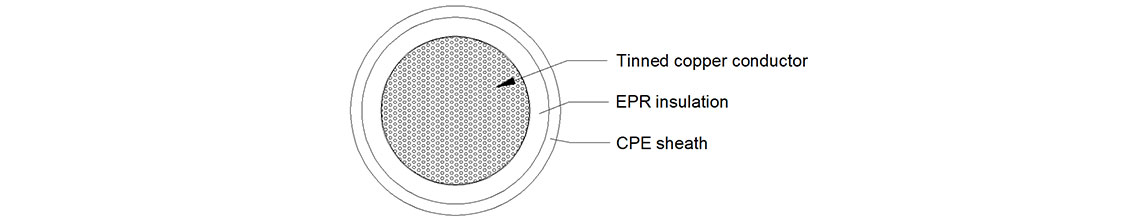

1. A two layer composite of flame retardant, oil and sunlight resistant Chlorinated Polyethylene (CPE) outer layer and Ethylene-Propylene rubber (EPR) inner layer. The composite design provides significant diameter reductions compared to designs using full thickness jackets.
2. Suitable for continuous operating temperatures of 90°C, wet or dry.
3. Rated RHH, RHW-2; 2/0 – 1111 kcmil listed and marked "for CT use".
4. UL listed as Sunlight Resistant.
5. UL listed as Marine Shipboard Cable (4/0 and larger) – Special order only.
6. Insulation and jacket meet hazardous waste regulations, per Code of Federal Regulations 40 Section 261 (40CFR261) for characteristic lead content.
7. Flame Resistance: FT-4/IEEE1202 for 2/0 – 1111 kcmil and UL VW-1.
8. Meets smoke release and other requirements of Vertical Cable Tray.
Test UL 1685 and is marked “ST-1” for 2/0 – 1111 kcmil.
9. Extremely flexible stranding used for increased flexibility and ease of installation.

Specifications

ROHS

Low Voltage

UV Resistance

Working Temperature 90℃

Oil Resistance

Flame Retardant

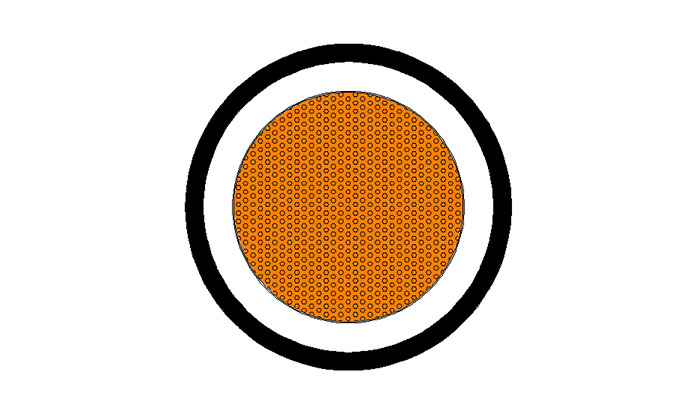

construction

PARAMETER

DLO

SIZE AWG Kcmil	CONDCTOR						POLYESTER FILM	INSULATION	JACKET	NOMINAL OVERALL DIAMETER	WEIGHT
	COND STRAND					Dia.	NOMINAL THICKNESS	NOMINAL INSULATION THICKNESS	NOMINAL JACKET THICKNESS	NOMINAL OVERALL DIAMETER	WEIGHT
					mm	mm	mm	mm	mm	mm	Kg/km
12	1	×	37	/	0.373	2.61	0.05	1.52	0.38	6.6	86.6
10	1	×	27	/	0.47	2.81	0.05	1.52	0.38	6.8	94.6
8	1	×	37	/	0.511	3.58	0.05	1.78	0.76	8.8	154.2
6	1	×	61	/	0.511	4.60	0.05	1.78	0.76	9.8	213.1
4	7	×	15	/	0.511	6.53	0.05	1.78	0.76	11.8	322.2
3	7	×	19	/	0.511	7.36	0.05	1.78	0.76	12.6	386.2
2	7	×	23	/	0.511	8.11	0.05	1.78	0.76	13.3	449.0
1	7	×	30	/	0.511	9.27	0.05	2.29	1.14	16.3	621.3
1/0	19	×	14	/	0.511	10.50	0.05	2.29	1.14	17.5	748.5
2/0	19	×	18	/	0.511	11.93	0.05	2.29	1.14	18.9	916.7
3/0	19	×	22	/	0.511	13.21	0.05	2.29	1.14	20.2	1082.2
4/0	19	×	28	/	0.511	14.92	0.05	2.29	1.14	21.9	1326.9
262.6	19	×	34	/	0.511	16.45	0.05	2.67	1.65	25.2	1669.4
313.3	19	×	41	/	0.511	18.08	0.05	2.67	1.65	26.9	1955.0
373.7	19	×	49	/	0.511	19.78	0.05	2.67	1.65	28.6	2277.8
444.4	19	×	58	/	0.511	21.52	0.05	2.67	1.65	30.3	2637.5
535.3	19	×	70	/	0.511	23.65	0.05	3.05	1.65	33.2	3171.0
646.4	37	×	43	/	0.511	25.93	0.05	3.05	1.65	35.5	3715.5
777.7	37	×	52	/	0.511	28.52	0.05	3.05	1.65	38.1	4403.1
929.9	61	×	38	/	0.511	31.32	0.05	3.05	1.65	40.9	5210.2
1111.1	61	×	45	/	0.511	34.10	0.05	3.56	2.41	46.2	6343.0
