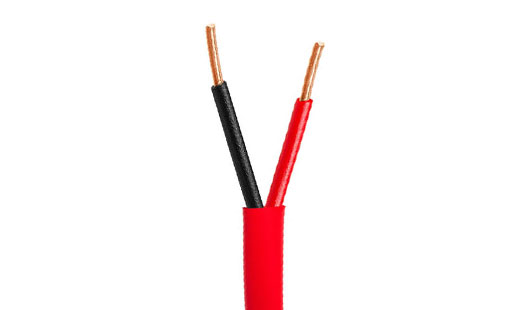

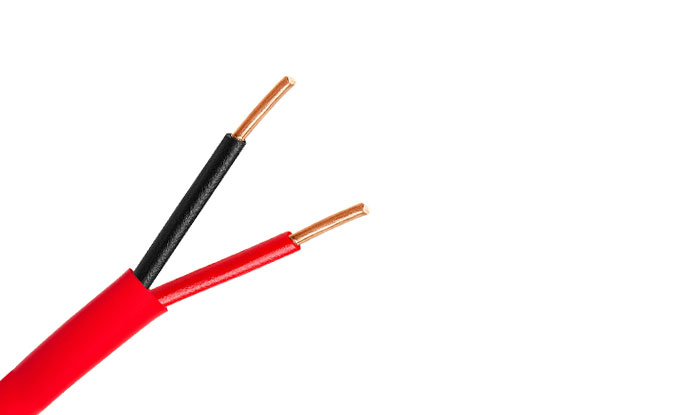

Fire Alarm Cable Multi-Paired, Unshielded, Non-Plenum CSA FAS105, FPL (UL), NEC Type PLTC, UL Certificated Cables

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

•Wiring of fire alarms •Smoke alarms •Voice communications •Burglar alarms
•Fire protection circuits •Suggested voltage rating: 300 volts

Compliances

•NEC Article 725 PLTC (UL: 105˚C, 300 V)
•NEC Article 760 Type FPL (UL: 105˚C, 300 V)
•CSA FAS105 (CSA: 105˚C, 300 V)
•C22.2 No. 208-03 (R2008) Weather
(Sunlight) Resistant (1,000 HR)
•RoHS Compliant Directive 2011/65/EU
•Designed to meet UL 70,000 BTU Vertical Tray Flame Test
•Passes CSA FT4 Vertical Flame Test
•CE: Low Voltage Directive (LVD) 2006/95/EC

Specifications

ROHS

Low Voltage

UV Resistance

Flame Retardant

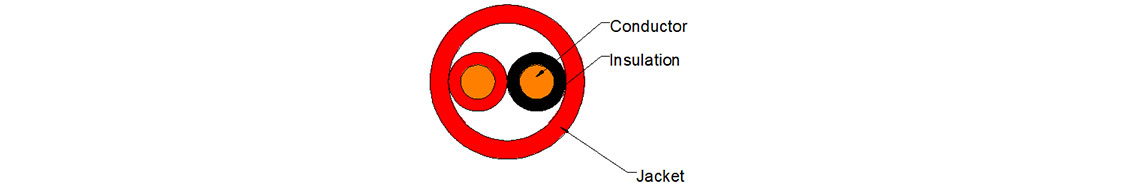

construction

Conductor:

•22 and 18 AWG fully annealed solid bare copper per ASTM B3 •Twisted pairs

Insulation:

•Premium-grade, color-coded PVC •Fire Alarm Color Code Chart

Jacket:

•Premium-grade PVC, red •Temperature range: -20°C to +105°C

PARAMETER

CSA FAS105, FPL (UL), NEC Type PLTC

NO. OF PAIRS	AWG SIZE	COND. STRAND	NOM. INSULATION THICKNESS		NOM. JACKET THICKNESS		NOMINAL O.D.
NO. OF PAIRS	AWG SIZE	COND. STRAND	in	mm	in	mm	in	mm
3	22	Solid	0.012	0.30	0.042	1.07	0.279	7.09
6	22	Solid	0.012	0.30	0.042	1.07	0.350	8.89
12	22	Solid	0.012	0.30	0.053	1.35	0.474	12.04
15	22	Solid	0.012	0.30	0.053	1.35	0.523	13.28
27	22	Solid	0.012	0.30	0.063	1.60	0.672	17.07
6	18	Solid	0.015	0.38	0.053	1.35	0.487	12.37
