Low Voltage Power Multi-Conductor Cable, UL listed cable, Type MC cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

Economical and versatile alternate to a conduit system; for services, feeders and branch circuits in industrial and commercial applications; power, lighting, control and signal circuits; indoors or outdoors, in wet or dry locations, direct burial, in cable tray, in raceways, as open runs of cable, as aerial cable on a messenger, and in Class I, II and III, Division 1 and 2 hazardous locations. Recommended for VFD/PWM drives.

Conductor Temperature

90°C dry or wet

Sizes

#14 AWG – 750 kcmil

Specifications

Working Temperature 90℃

construction

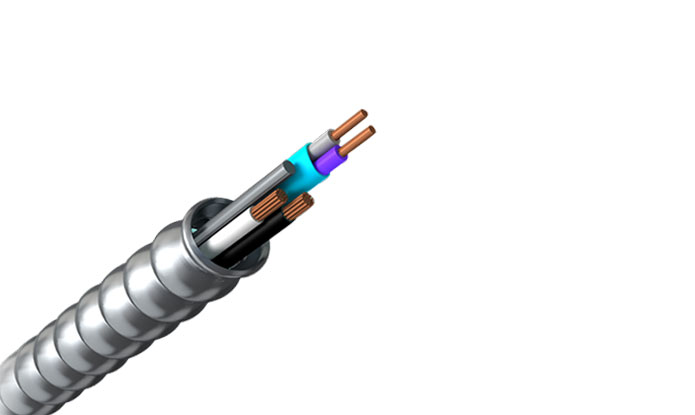

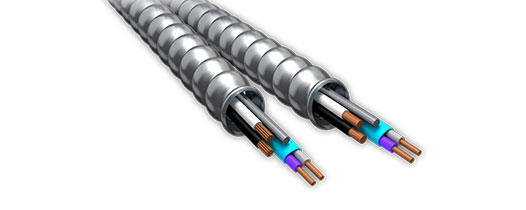

Two or more stranded copper conductors (sizes #8 AWG and larger are compact stranded), insulated, and color-coded conductors, ground wire, fillers, binder tape over core, corrugated aluminum C-L-X sheath, jacket overall.

parameter

7 Wires

19 Wires

37 Wires

conductor size & No. of strands	Number of ungrounded conductors	grounding conductor size	Insulation Thickness (mils)	C-L-X O.D. (inches)	Inner Jacket Thickness (mils)	Approx. O.D. (inches)	approx net weight (lbs/1000ft)
14(7x)	3	3x18	30	0.53	50	0.64	160
14(7x)	4	3x18	30	0.58	50	0.69	222
12(7x)	3	3x16	30	0.58	50	0.69	239
12(7x)	4	3x16	30	0.67	50	0.77	286
10(7x)	3	3x14	30	0.62	50	0.73	300
10(7x)	4	3x14	30	0.67	50	0.78	348
8(7x)	3	3x14	45	0.71	50	0.82	385
8(7x)	4	10	45	0.8	50	0.91	465
6(7x)	3	3x12	45	0.8	50	0.95	525
6(7x)	4	8	45	0.89	50	0.99	630
4(7x)	3	3x12	45	0.89	50	0.99	704
4(7x)	4	8	45	0.97	50	1.08	845
2(7x)	3	3x10	45	1.02	50	1.13	995
2(7x)	4	6	45	1.15	50	1.26	1245

conductor size & No. of strands	Number of ungrounded conductors	grounding conductor size	Insulation Thickness (mils)	C-L-X O.D. (inches)	Inner Jacket Thickness (mils)	Approx. O.D. (inches)	approx net weight (lbs/1000ft)
1/0(19x)	3	3x10	55	1.24	50	1.35	1470
2/0(19x)	3	3x10	55	1.34	50	1.45	1770
2/0(19x)	4	6	55	1.51	60	1.65	2310
4/0(19x)	3	3x8	55	1.6	60	1.73	2675
4/0(19x)	4	4	55	1.78	60	1.91	3430

conductor size & No. of strands	Number of ungrounded conductors	grounding conductor size	Insulation Thickness (mils)	C-L-X O.D. (inches)	Inner Jacket Thickness (mils)	Approx. O.D. (inches)	approx net weight (lbs/1000ft)
250(37x)	3	3x8	65	1.74	60	1.87	3140
350(37x)	3	3x7	65	1.96	60	2.09	4210
350(37x)	4	3	65	2.19	60	2.32	5440
500(37x)	3	3x6	65	2.28	75	2.44	5930
500(37x)	4	3	65	2.49	75	2.65	7570
750(37x)	3	3x5	80	2.75	75	2.92	8700
