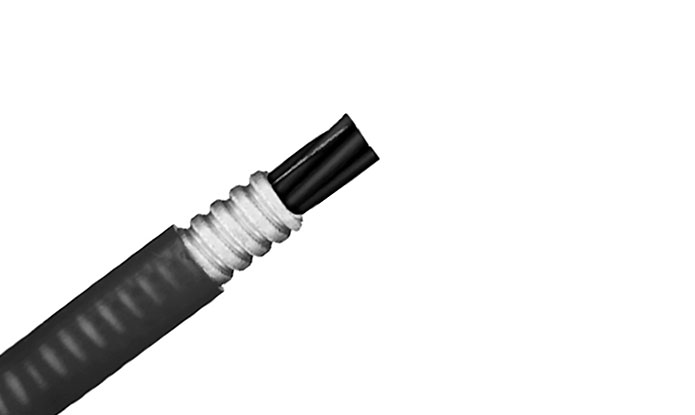

MC Continuous Armored Cable Multi-Conductor XLP PVC 600V, UL listed cable, Type MC cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

Economical and versatile alternate to a conduit system; for services, feeders and branch circuits in industrial and commercial applications; power, lighting, control and signal circuits; indoors or outdoors, in wet or dry locations, direct burial, in cable tray, in raceways, as open runs of cable, as aerial cable on a messenger and in Class I, Division 2; Class II, Division 2; and Class III hazardous locations.

Specifications

Low Voltage

Working Temperature 90℃

construction

Conductor:

Two or more stranded copper conductors, sizes #8 AWG and larger are compact stranded.

Insulation:

XLP-insulated, color-coded conductors.

Color Code:

Per ICEA Method 1, Table E-2.

Assembly and Jacket:

The individual conductors are cabled together with non-hygroscopic fillers and binder tape overall, continuous corrugated aluminum sheath armor with black PVC jacket overall.

Conductor Temperature:

90ºC dry or wet

Sizes:

#14 AWG – #10 AWG

PARAMETER

Multi-Conductor XLP PVC 600V

Conductor Size/Strands	No. of Conductors	Insulat. Thick. (Mils)	Nom. Diam. Over Armor (Inches)	Jacket Thick. (Mils)	Approximate O.D. (Inches)	Weight (lbs./ 1000 ft.)
14 (7x)	3	30	0.49	50	0.60	153
14 (7x)	4	30	0.53	50	0.64	181
14 (7x)	5	30	0.58	50	0.69	210
14 (7x)	7	30	0.62	50	0.73	254
14 (7x)	9	30	0.71	50	0.82	308
14 (7x)	12	30	0.80	50	0.91	381
14 (7x)	19	30	0.93	50	1.04	537
14 (7x)	37	30	1.24	50	1.35	946
12 (7x)	3	30	0.53	50	0.64	189
12 (7x)	4	30	0.58	50	0.69	226
12 (7x)	5	30	0.62	50	0.73	262
12 (7x)	7	30	0.67	50	0.78	324
12 (7x)	9	30	0.80	50	0.91	405
12 (7x)	12	30	0.89	50	1.00	503
12 (7x)	19	30	1.02	50	1.13	721
12 (7x)	37	30	1.37	50	1.48	1301
10 (7x)	3	30	0.58	50	0.69	238
10 (7x)	4	30	0.67	50	0.78	297
10 (7x)	7	30	0.75	50	0.86	436
