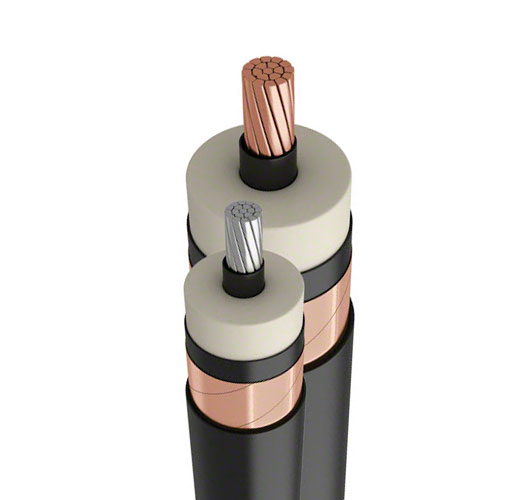

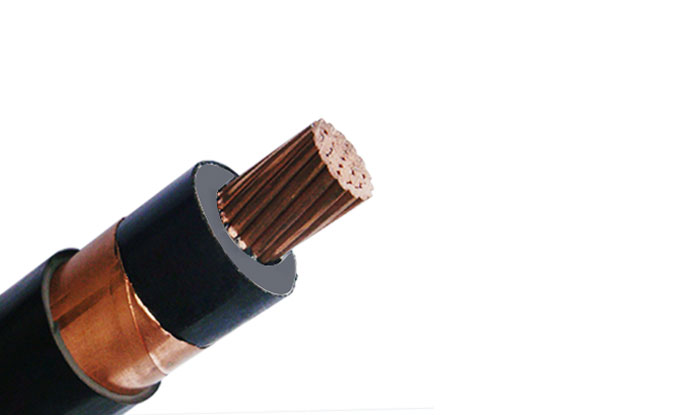

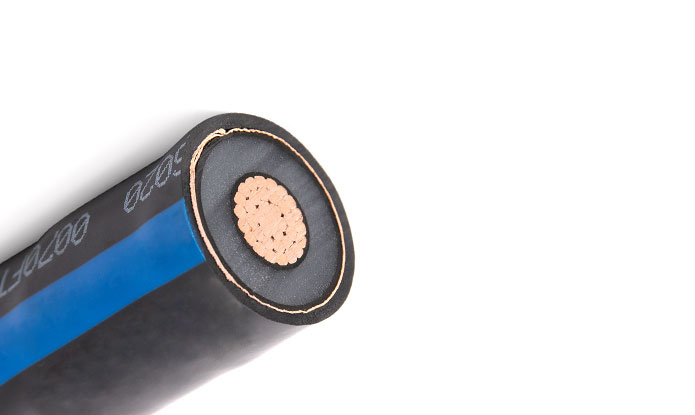

MV90 Cable, UL cable, Medium Voltage Cable, Power Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC.

Standards:

UL 1072 Medium Voltage Power Cables.
ICEA S-93-639/NEMA WC74 5 kV – 46 kV Shielded Power Cables.
ICEA S-97-682 Standard for Utility Shielded Power Cables Rated 5 kV – 46 kV.
AEIC CS8
Specification for Extruded Dielectric, Shielded Power Cables Rated 5 kV – 46 kV.

Specifications

Maximum operating voltage:
• 5 kV to 35 kV 100% and 133% IL Maximum conductor operation temperatures: Wet and dry locations
• Normal: 90 °C
• Emergency: 130 °C
• Short Circuit: 250 °C

Specifications

UV Resistance

Medium Voltage

Working Temperature 90℃

Flame Retardant

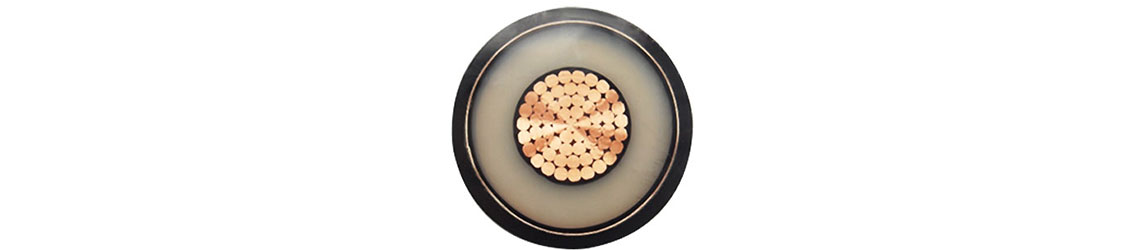

construction

Conductor:

Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400. On request, strand filled or compressed strand. Sizes: 8 AWG (6 AWG Aluminum) up to 1000 kcmil. On request, larger conductor sizes available.

Conductor Shield:

Semi conducting cross-linked polyethylene (XLPE).

Insulation:

Thermoset crosslinked polyethylene (XLPE). On request, TR-XLPE.

Insulation Shield:

Semi conducting cross-linked polyethylene (XLPE).

Binder Tape:

A suitable tape, as required.

Jacket:

Black sunlight resistance and flame retardant polyvinyl chloride (PVC) compound. Configuration Options: On request, Triplex or Paralleled configurations.

PARAMETER

5kV XLPE Insulated

8kV XLPE insulated

15kV XLPE insulated

25kV XLPE insulated

35kV XLPE insulated

Size AWG	Number of Strands	Conductor Nominal OD	100% Insulation Levels (90 mil)
			Nominal diameter over Insulation	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
			Nominal diameter over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum
or kcmil		in	mil	mil	in	lb/kft	lb/kft
8	7	0.13	0.35	60	0.56	200	–
6	7	0.17	0.38	60	0.59	245	188
4	7	0.21	0.43	60	0.64	311	221
2	7	0.27	0.48	60	0.69	410	267
1	19	0.3	0.51	60	0.72	475	295
1/0	19	0.34	0.55	60	0.76	558	331
2/0	19	0.38	0.59	60	0.8	659	373
3/0	19	0.42	0.64	80	0.89	821	460
4/0	19	0.48	0.69	80	0.94	980	526
250	37	0.52	0.75	80	0.99	1124	586
350	37	0.62	0.84	80	1.09	1477	724
500	37	0.74	0.96	80	1.21	1996	921
750	61	0.91	1.14	80	1.41	2879	1266
1000	61	1.06	1.3	80	1.57	3723	1573

Size AWG	Number of Strands	Conductor Diameter	100% Insulation Level (115 mil)					133% Insulation Level (140 mil)
			100% Insulation Level (115 mil)					133% Insulation Level (140 mil)
			Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight		Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
or kcmil			Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum	Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum
		in	in	mil	in	lb/kft		in	mil	in	lb/kft
2	7	0.27	0.53	60	0.75	438	296	0.58	60	0.8	469	326
1	19	0.3	0.56	60	0.78	504	325	0.61	60	0.83	536	356
1/0	19	0.34	0.6	60	0.81	588	362	0.65	80	0.9	656	429
2/0	19	0.38	0.64	80	0.89	726	440	0.69	80	0.94	762	476
3/0	19	0.42	0.69	80	0.94	857	496	0.74	80	0.99	894	533
4/0	19	0.48	0.74	80	0.99	1018	563	0.79	80	1.04	1056	601
250	37	0.52	0.8	80	1.05	1163	625	0.85	80	1.1	1203	666
300	37	0.57	0.85	80	1.1	1341	697	0.9	80	1.15	1383	739
350	37	0.62	0.89	80	1.14	1519	766	0.94	80	1.19	1563	809
400	37	0.66	0.93	80	1.19	1694	834	0.98	80	1.24	1739	879
500	37	0.74	1.01	80	1.29	2066	991	1.06	80	1.34	2114	1039
600	61	0.81	1.1	80	1.37	2419	1129	1.15	80	1.42	2470	1180
750	61	0.91	1.19	80	1.47	2931	1318	1.24	80	1.52	2985	1372
1000	61	1.06	1.35	80	1.62	3780	1630	1.4	80	1.67	3838	1688

Size AWG	Number of Strands	Conductor Diameter	100% Insulation Level (175 mil)					133% Insulation Level (220 mil)
			Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight		Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
			Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum	Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum
or kcmil		in	in	mil	in	lb/kft		in	mil	in	lb/kft
2	7	0.27	0.65	80	0.91	549	406	0.74	80	1	615	472
1	19	0.3	0.68	80	0.94	618	438	0.77	80	1.03	686	506
1/0	19	0.34	0.72	80	0.97	707	480	0.81	80	1.06	776	549
2/0	19	0.38	0.76	80	1.01	814	528	0.85	80	1.1	886	600
3/0	19	0.42	0.81	80	1.06	948	587	0.9	80	1.15	1023	662
4/0	19	0.48	0.86	80	1.11	1113	658	0.95	80	1.2	1191	736
250	37	0.52	0.92	80	1.17	1262	725	1.01	80	1.28	1368	830
300	37	0.57	0.97	80	1.22	1445	800	1.06	80	1.33	1554	909
350	37	0.62	1.01	80	1.29	1651	897	1.1	80	1.38	1738	985
400	37	0.66	1.05	80	1.33	1830	970	1.14	80	1.42	1920	1060
500	37	0.74	1.13	80	1.41	2184	1109	1.22	80	1.5	2279	1203
600	61	0.81	1.22	80	1.49	2544	1253	1.31	80	1.58	2643	1353
750	61	0.91	1.31	80	1.59	3062	1449	1.4	110	1.74	3269	1656
1000	61	1.06	1.47	110	1.8	4029	1879	1.56	110	1.92	4197	2047

Size AWG	Number of Strands	Conductor Diameter	100% Insulation Level (260 mil)					133% Insulation Level (320 mil)
			Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight		Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
			Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum	Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum
or kcmil		in	in	mil	in	lb/kft		in	mil	in	lb/kft
1	19	0.3	0.85	80	1.1	749	570	0.97	80	1.23	854	675
1/0	19	0.34	0.89	80	1.14	841	616	1.01	80	1.29	974	747
2/0	19	0.38	0.93	80	1.18	953	668	1.05	80	1.33	1090	804
3/0	19	0.42	0.98	80	1.23	1092	733	1.1	80	1.37	1233	872
4/0	19	0.48	1.03	80	1.3	1288	834	1.15	80	1.43	1408	953
250	37	0.52	1.09	80	1.36	1444	907	1.21	80	1.48	1569	1031
300	37	0.57	1.14	80	1.41	1633	989	1.26	80	1.53	1761	1116
350	37	0.62	1.18	80	1.45	1820	1067	1.3	80	1.58	1951	1198
400	37	0.66	1.22	80	1.49	2003	1144	1.34	80	1.62	2138	1278
500	37	0.74	1.3	80	1.57	2366	1292	1.42	110	1.76	2610	1534
600	61	0.81	1.39	80	1.66	2735	1445	1.51	110	1.88	3039	1748
750	61	0.91	1.48	110	1.82	3370	1758	1.6	110	1.97	3582	1969
1000	61	1.06	1.64	110	2	4307	2158	1.76	110	2.12	4483	2333

Size AWG	Number of Strands	Conductor Diameter	100% Insulation Level (345 mil)					133% Insulation Level (420 mil)
			100% Insulation Level (345 mil)					133% Insulation Level (420 mil)
			Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight		Nominal Diameter	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
or kcmil			Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum	Over Insulation	Jacket Thickness	Approximate Outside Diameter	Copper	Aluminum
		in	in	mil	in	lb/kft		in	mil	in	lb/kft
1/0	19	0.34	1.06	80	1.34	1022	795	1.21	80	1.49	1176	949
2/0	19	0.38	1.1	80	1.38	1139	853	1.25	80	1.53	1296	1010
3/0	19	0.42	1.15	80	1.42	1284	923	1.3	80	1.57	1446	1085
4/0	19	0.48	1.2	80	1.48	1461	1006	1.35	80	1.63	1627	1173
250	37	0.52	1.26	80	1.53	1623	1085	1.41	110	1.74	1897	1359
300	37	0.57	1.31	80	1.58	1817	1172	1.46	110	1.79	2098	1454
350	37	0.62	1.35	80	1.63	2009	1255	1.5	110	1.84	2297	1544
400	37	0.66	1.39	80	1.67	2197	1337	1.54	110	1.91	2541	1681
500	37	0.74	1.47	110	1.81	2674	1598	1.62	110	1.99	2926	1850
600	61	0.81	1.56	110	1.93	3107	1816	1.71	110	2.08	3320	2029
750	61	0.91	1.65	110	2.02	3653	2040	1.8	110	2.17	3875	2262
1000	61	1.06	1.81	110	2.17	4559	2409	1.96	110	2.32	4795	2645
