SDW Cable, UL Cable, Service drop cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

To supply 120 volts aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Standards:

Service drop cable meets or exceeds the following ASTM specifications:
•B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
• B-231 Aluminum Conductors, Concentric-Lay-Stranded
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
•B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors
• B-901 Compressed Round Stranded Aluminum Conductors. Using Single Input Wire
• ANSI/ICEA S-76-474

Features

Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC or ACSR.

Specifications

Low Voltage

construction

parameter

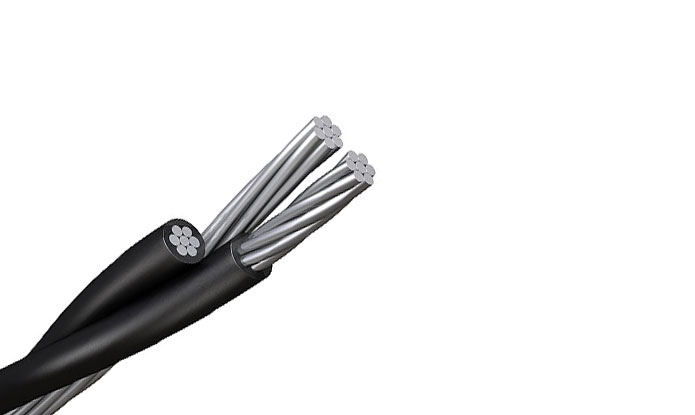

Duplex Service Drop - Aluminum Conductor AAC

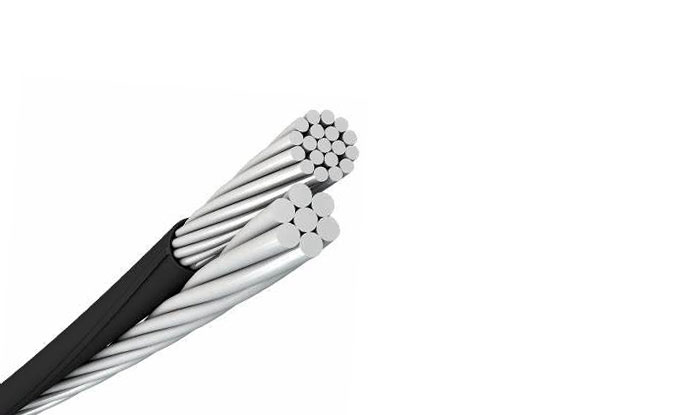

Duplex Service Drop - Aluminum Conductor ACSR - Neutral Messenger

Duplex Service Drop - Aluminum Conductor AAAC - Alloy Neutral Messenger

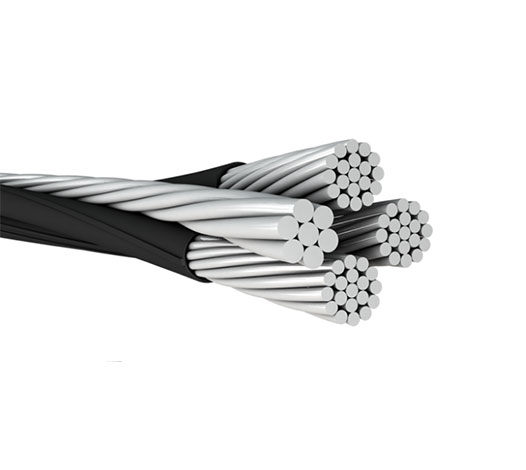

Triplex Service Drop - AAAC-Alloy Neutral Messenger

Triplex Service Drop - Aluminum Conductor - AAAC - Alloy Reduced Neutral Messenger

Triplex Service Drop - Aluminum Conductor - AAC - Neutral Messenger

Triplex Service Drop - Aluminum Conductor - Full Size ACSR Messenger

Triplex Service Drop - Aluminum Conductor - ACSR Reduced Size Messenger

Duplex Service Drop - Aluminum Conductor AAC
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 ft. (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Peakingese	6	Solid	45	6	7/w	563	63.5	61.7	85	70
Collie	6	7/w	45	6	7/w	563	66.8	63.1	85	70
Dachshund	4	Solid	45	4	7/w	881	95.5	93.4	110	90
Spaniel	4	7/w	45	4	7/w	881	100.5	95.4	110	90
Doberman	2	7/w	45	2	7/w	1,350	152.7	145.7	150	120
Malamute	1/0	19/w	60	1/0	7/w	1,990	242.6	234.2	205	160

Duplex Service Drop - Aluminum Conductor ACSR - Neutral Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Setter	6	Solid	45	6	6/1	1,190	75.0	73.2	85	70
Shepherd	6	7/w	45	6	6/1	1,190	78.3	74.6	85	70
Eskimo	4	Solid	45	4	6/1	1,860	113.7	111.6	110	90
Terrier	4	7/w	45	4	6/1	1,860	118.7	113.6	110	90
Chow	2	7/w	45	2	6/1	2,850	181.7	174.7	150	120
Bull	1/0	19/w	60	1/0	6/1	4,380	288.7	280.3	200	160

Duplex Service Drop - Aluminum Conductor AAAC - Alloy Neutral Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Chihuahua	6	Solid	45	6	7/w	1,110	67.6	65.8	85	70
Vizsla	6	7/w	45	6	7/w	1,110	70.9	67.2	85	70
Harrier	4	Solid	45	4	7/w	1,760	102.0	99.9	110	90
Whippet	4	7/w	45	4	7/w	1,760	107.0	101.9	110	90
Schnauzer	2	7/w	45	2	7/w	2,800	163.3	156.2	150	120
Heeler	1/0	19/w	60	1/0	7/w	4,460	259.2	250.8	200	160

Triplex Service Drop - AAAC-Alloy Neutral Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Minex	6	Solid	45	6	7	1,110	106.6	102.9	85	70
Hippa	6	7/w	45	6	7	1,110	107.0	105.7	85	70
Prawn	4	Solid	45	4	7	1,760	158.4	154.1	110	90
Barnacles	4	7/w	45	4	7	1,760	160.0	157.0	110	90
Shrimp	2	7/w	45	2	7	2,800	243.0	238.0	150	115
Gammarus	1/0	7/w	60	1/0	7	4,460	390.0	384.0	200	155
Leda	1/0	19/w	60	1/0	7	4,460	384.0	378.0	200	155
Dungenese	2/0	7/w	60	2/0	7	5,390	481.0	474.0	230	180
Cyclops	2/0	19/w	60	2/0	7	5,390	473.0	467.0	230	180
Flustra	3/0	19/w	60	3/0	7	6,790	596.0	589.1	260	205
Lepas	4/0	19/w	60	4/0	7	8,560	725.0	716.0	300	235

Triplex Service Drop - Aluminum Conductor - AAAC - Alloy Reduced Neutral Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Artemia	4	Solid	45	6	7	1,110	134.0	132.0	110	90
Crab	4	7/w	45	6	7	1,110	144.0	141.2	110	90
Solaster	2	7/w	45	4	7	1,760	216.0	212.6	150	115
Sandcrab	1/0	7/w	60	2	7	2,800	348.0	341.0	200	155
Echinus	1/0	19/w	60	2	7	2,800	342.0	336.0	200	155
Crayfish	2/0	7/w	60	1	7	3,530	452.6	422.5	230	180
Sipho	2/0	19/w	60	1	7	3,530	441.0	422.5	230	180
Fulgar	3/0	19/w	60	1/0	7	4,460	525.0	518.0	260	205
Arca	4/0	19/w	60	2/0	7	5,360	640.0	632.0	300	235

Triplex Service Drop - Aluminum Conductor - AAC - Neutral Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Haiotis	6	Solid	45	6	7	563	102.5	98.8	85	70
Patella	6	7/w	45	6	7	563	104.0	101.6	85	70
Fusus	4	Solid	45	4	7	881	151.9	147.6	110	90
Oyster	4	7/w	45	4	7	881	154.0	151.7	110	90
Clam	2	7/w	45	2	7	1,350	232.0	228.0	150	115
Murex	1/0	7/w	1/0	1/0	7	1,990	374.0	367.0	200	155
Purpura	1/0	19/w	1/0	1/0	7	1,990	368.0	362.0	200	155
Nassa	2/0	7/w	2/0	2/0	7	2,510	461.0	453.0	230	180
Melita	3/0	19/w	3/0	3/0	19	3,310	585.2	562.9	260	205
Portunus	4/0	19/w	4/0	4/0	19	4,020	693.0	684.0	300	235
Nannynose	336.4	19/w	336.4	336.4	19	6,146	1,111.0	1,096.0	380	290

Triplex Service Drop - Aluminum Conductor - Full Size ACSR Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Paludina	6	Solid	45	6	6/1	1,190	114	113	85	70
Voluta	6	7/w	45	6	6/1	1,190	115	112	85	70
Whelk	4	Solid	45	4	6/1	1,860	163	161	110	90
Periwinkle	4	7/w	45	4	6/1	1,860	172	169	110	90
Conch	2	7/w	45	2	6/1	2,850	262	257	150	115
Neritina	1/0	7/w	60	1/0	6/1	4,380	420	414	200	115
Cenia	1/0	19/w	60	1/0	6/1	4,380	414	408	200	115
Runcina	2/0	7/w	60	2/0	6/1	5,310	519	512	230	180
Triton	2/0	19/w	60	2/0	6/1	5,310	511	505	230	180
Cherrystone	3/0	7/w	60	3/0	6/1	6,620	656	643	260	205
Mursia	3/0	19/w	60	3/0	6/1	6,620	633	626	260	205
Razor	4/0	7/w	60	4/0	6/1	8,350	814	799	300	235
Zuzara	4/0	19/w	60	4/0	6/1	8,350	785	777	300	235
Limpet	336.4	19/w	80	336.4	18/1	8,680	1,160	1,147	300	290

Triplex Service Drop - Aluminum Conductor - ACSR Reduced Size Messenger
Code Word	Phase Conductors			Bare Neutral			Weight per 1000 (lbs)		Rating (AMPS)
Code Word	Size AWG	Strand	Insulation Thickness (MLS)	Size AWG	Strand	Breaking Strength (lbs)	XLP	Poly	XLP	Poly
Scallop	4	Solid	45	6	6/1	1,190	142	139	110	90
Strombus	4	7/w	45	6	6/1	1,190	151	148	110	90
Cockle	2	7/w	45	4	6/1	1,860	228	224	150	115
Janthina	1/0	7/w	60	2	6/1	2,850	367	360	200	155
Ranella	1/0	19/w	60	2	6/1	2,850	361	356	200	155
Cavolinia	2/0	7/w	60	1	6/1	3,550	452	444	230	180
Clio	2/0	19/w	60	1	6/1	3,550	444	437	230	180
Sanddollar	3/0	7/w	60	1/0	6/1	4,380	570	557	260	205
Aega	3/0	19/w	60	1/0	6/1	4,380	565	552	260	205
Cutlefish	4/0	7/w	60	2/0	6/1	5,310	706	691	300	235
Cerapus	4/0	19/w	60	2/0	6/1	5,310	678	670	300	235
Cowry	336.4	19/w	80	4/0	6/1	8,350	1,135	1,093	380	290
