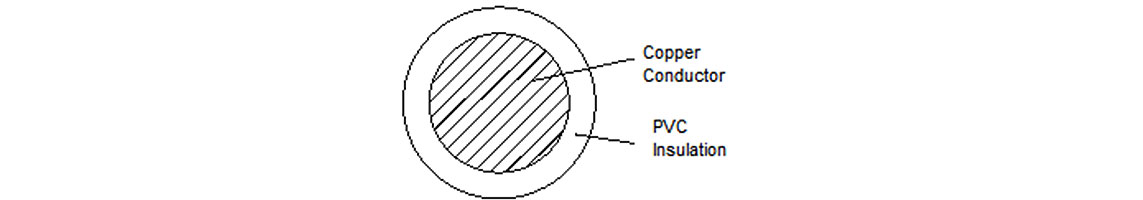

| Single Conductor | ||||||||
Type |
Size |
No. of strands |
Singles diameter | Cond. diameter | PVC thickness |
Overall diameter | Cable weight (approx.) | DC resistance (maximum) |
| AWG | mm | mm | mm | mm | kg / km | Ω / km | ||
| TF | 18 | 10 | 0.320 | 1.16 | 0.76 | 2.7 | 14 | 22.4 |
| 16 | 16 | 0.320 | 1.47 | 0.76 | 3.0 | 19 | 14.1 | |
