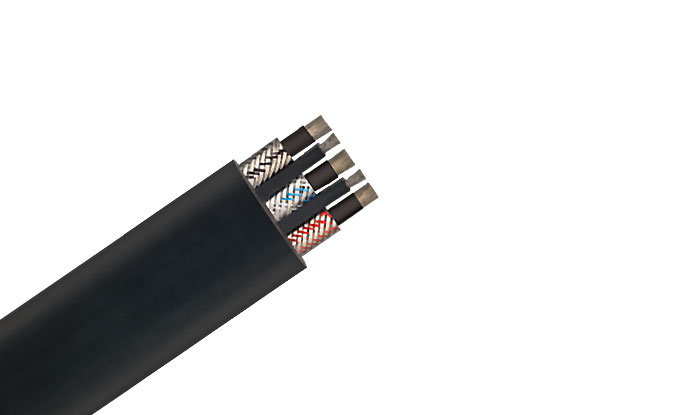

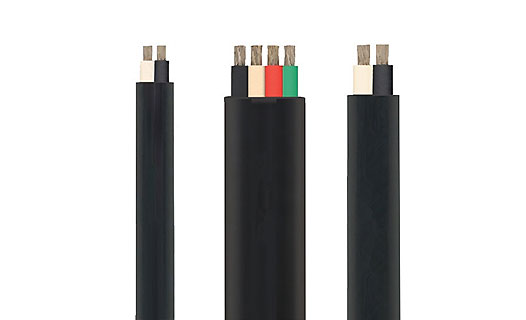

Type SHD Flat Cable, Power Cable, Flat Portable Cable, 3 Conductors Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

•Designed for use as trailing cables on AC mining equipment:
-Where induced voltages in the grounding system will not produce a hazard
-On low- and medium-voltage AC circuits where shielding is desired or required

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Features

•Flexible insulation shield provides shock hazard protection
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
•Flexible for easy handling

Specifications

Oil Resistance

Flame Retardant

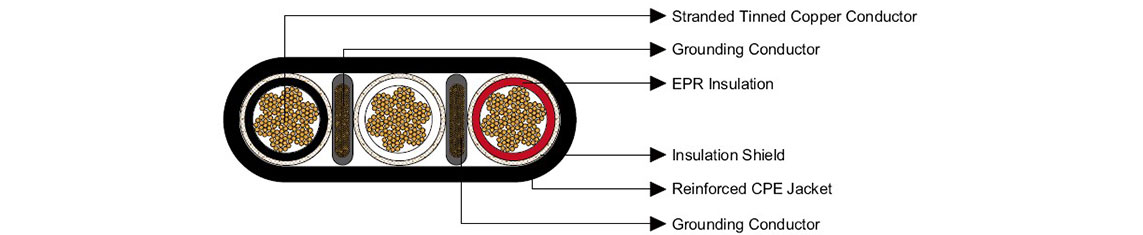

construction

Conductor:

2/0 AWG and 3/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172

Insulation:

Ethylene Propylene Rubber (EPR) insulation

Insulation Shield:

A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape

Grounding Conductor:

Coated copper, rope-lay-stranded per ASTM B172 Two conductors, shaped and covered with an extruded semi-conducting shield

Jacket:

Reinforced, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)

parameter

TYPE SHD - 2000 VOLTS Flat

NO. OF COND.	COND. SIZE (AWG)	COND. STRAND	NOMINAL INSULATION THICKNESS		GRD. COND. SIZE (AWG)	NOMINAL CABLE DIMENSIONS	NET WEIGHT
							NET WEIGHT
							kg/ km
			INCHES	mm		mm	kg/ km
3	2/0	329	0.08	2	3	30.0 x 76.0	4980
3	3/0	413	0.08	2	2	31.8 x 83.6	5789
