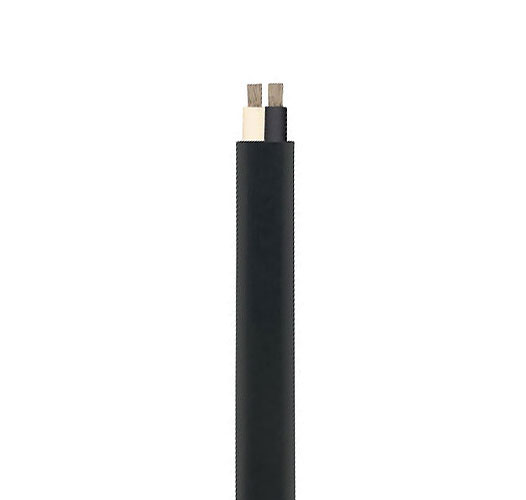

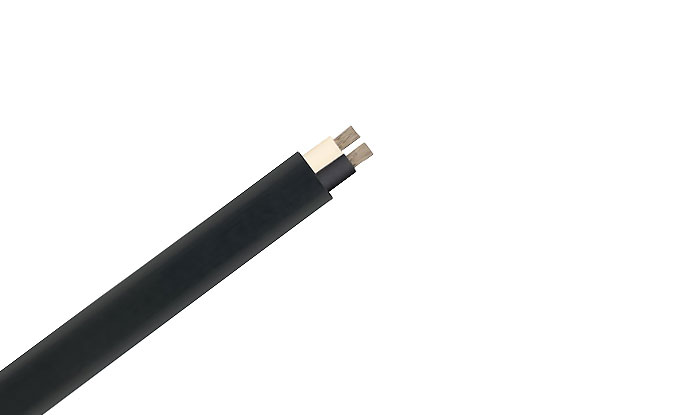

Type W cable, Power Cable, Flat Cable, Portable Cable, 2 Conductors Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

Designed for use as trailing cables on DC mining equipment
Designed for use where diode grounding is employed

Features:

•Flat construction provides maximum resistance to damage from crushing and runovers0
•D-shaped insulation prevents conductors from shifting under the jacket
•Excellent physical toughness and heat stability
•Excellent heat, moisture, steam, oil, chemical, radiation and compression cut resistance
•Flexible for easy handling
•Resists cutting, impact, abrasion, flame and sunlight
•Excellent thermal stability and physical properties over a broad temperature range

Compliances

ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
Meets flame test requirements and is accepted for listing by MSHA

Specifications

Low Voltage

UV Resistance

Working Temperature 90℃

Oil Resistance

Flame Retardant

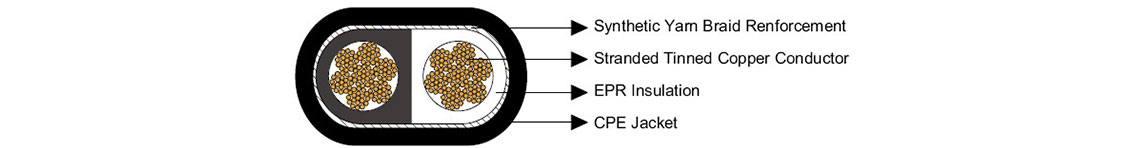

construction

Conductor:

4 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172

Insulation:

Ethylene Propylene Rubber (EPR) insulation colored (black and white)

Jacket:

Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)

Jacket Marking:

2/C FLAT TYPE W 2000 VOLTS P-102-109 MSHA

PARAMETER

TWO CONDUCTOR, FLAT PARALLEL PORTABLE W/O GROUND

NO. OF COND.	COND. SIZE (AWG)	COND. STRAND	NOMINAL INSULATION THICKNESS	NOMINAL CABLE DIMENSIONS	NET WEIGHT
					NET WEIGHT
					kg/ km
			mm	mm	kg/ km
2	4	259	1.52	15.5 x 26.7	818
2	3	259	1.52	17.3 x 29.0	1005
2	2	259	1.52	18.5 x 31.5	1205
2	1	259	2.03	20.6 x 35.6	1520
2	1/0	259	2.03	23.6 x 38.2	1880
2	2/0	329	2.03	25.1 x 41.4	2255
2	3/0	413	2.03	26.2 x 45.0	2694
2	4/0	532	2.03	27.9 x 48.0	3237
