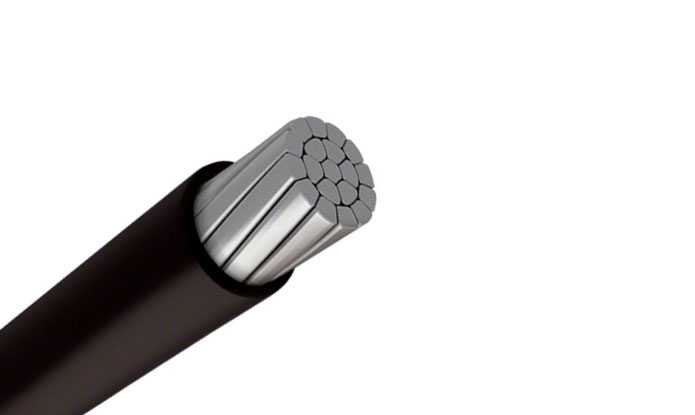

XHHW-2 cable, Aluminum Cable, XLPE Insulation Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

XHHW-2 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90℃. Voltage rating for XHHW-2 cable is 600V.

Standards:

Meets or exceed the following standards:
UL 44
NEMA WC-70
Requirements of the National Electrical Code ASTM B800, B801
Federal Specification J-C-30B Sunlight resistant

Specifications

Low Voltage

UV Resistance

Working Temperature 90℃

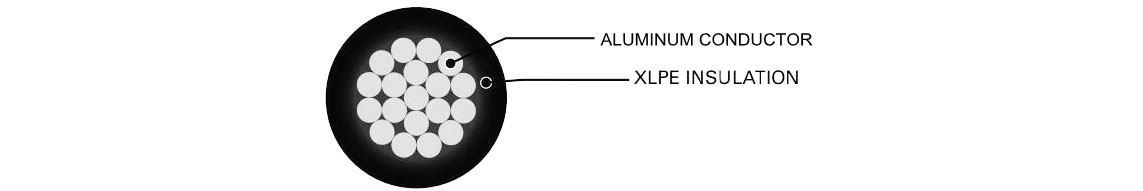

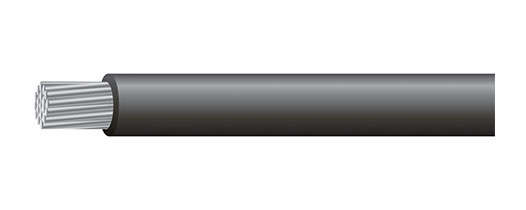

construction

Conductor:

Compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM.

Insulation:

Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLPE), low coefficient of friction, “slippery” or “slick” material. It is available in ten solid colors.

parameter

Aluminum XHHW-2 600V XLPE Insulation

PWC Part Number	Size AWG/ KCM	Stranding	Conductor Diameter (inches)	Insulation Thickness (inches)	Overall Diameter (inches)	Weight (lbs/1000’)	Ampacity at 90°C *
8-01XHHW-2-ALUM	8	7	0.134	0.045	0.227	30	45
6-01XHHW-2-ALUM	6	7	0.169	0.045	0.262	42	55
4-01XHHW-2-ALUM	4	7	0.213	0.045	0.306	58	75
2-01XHHW-2-ALUM	2	7	0.268	0.045	0.361	86	100
1-01XHHW-2-ALUM	1	18	0.299	0.055	0.412	110	115
1/0-01XHHW-2-ALUM	1/0	18	0.335	0.055	0.449	134	135
2/0-01XHHW-2-ALUM	2/0	18	0.378	0.055	0.489	163	150
3/0-01XHHW-2-ALUM	3/0	18	0.423	0.055	0.536	200	175
4/0-01XHHW-2-ALUM	4/0	18	0.476	0.055	0.588	247	205
250-01XHHW-2-ALUM	250	35	0.520	0.065	0.653	296	230
300-01XHHW-2-ALUM	300	35	0.571	0.065	0.703	359	260
350-01XHHW-2-ALUM	350	35	0.614	0.065	0.749	401	280
400-01XHHW-2-ALUM	400	35	0.657	0.065	0.792	453	305
500-01XHHW-2-ALUM	500	35	0.736	0.065	0.869	556	350
600-01XHHW-2-ALUM	600	58	0.816	0.080	0.979	679	385
700-01XHHW-2-ALUM	700	58	0.877	0.080	1.040	782	425
750-01XHHW-2-ALUM	750	58	0.909	0.080	1.071	833	435
900-01XHHW-2-ALUM	900	58	0.999	0.080	1.169	983	480
1000-01XHHW-2-ALUM	1000	58	1.059	0.080	1.223	1090	500
